I. INTRODUCTION
Recently, different form factors of wearable computing have been commercialized with the introduction of products such as Google Glass Enterprise Edition 2, Microsoft HoloLens 2, and Facebook Oculus Quest 2. These smart wearable glasses are demonstrating great potential for extended reality (XR) applications covering various configurations of augmented reality (AR), virtual reality (VR), and mixed reality (MR). On these smart wearable glasses, a different set of interaction method is required. Lee and Hui surveyed various possible interaction methods for smart glasses [1]. Among the classified interaction methods, touchless inputs, hands-free interaction, and voice recognition interaction methods are useful in XR training applications where users’ hands are preoccupied to carry out tasks. Moreover, we believe that users in XR training can be supplied with rich, high-quality, pre-defined, and external data sources such as YouTube videos and open public data API (Application Programming Interface), beyond consuming simple audio contents [2].
Our contributions in this paper are as follows.
-
We propose a general framework for utilizing self-instruction contents hands-free on the smart wearable glasses.
-
We introduce a content preparation method using structured procedural timestamps with YouTube videos and open public data API.
-
We demonstrate feasibility of our approach by identifying several use case scenarios and implementing a proof-of-concept application on the smart wearable glasses.
II. RELATED WORK
Fiorella and Mayer refer to instruction video as “a video lesson that is intended to help people learn targeted material” [3]. In [3], learning outcomes with instructional video can be improved by segmenting the video (i.e., “breaking the video into parts and allowing students to control the pace of the presentation” [3]) and providing mixed perspective [3]. Similarly, the effectiveness of a video tutorial has been reported [4]. Smart glasses have been used for self-training using Vuzix Blade [5] and between a group of people using Google Glass Enterprise Edition 2 [6].
In comparison to related works, we attempt to design and implement a self-instruction training application that uses rich, high-quality, pre-defined, and external data sources such as YouTube videos and open public data API. Remote collaboration or telementoring [7], [8] scenarios involve human mentors explicitly providing feedback and instructions, instead we integrate external data sources as self-sufficient instruction and training materials.
III. SELF-INSTRUCTION TRAINING SCENARIOS
Our paper is organized as shown in Fig. 1. In this section, we first illustrate two motivation scenarios where a wearable device (i.e., smart glass) can be useful. These two concrete scenarios are used to elicit application requirements in Section IV. Using the elicited requirements, we propose and design a smart glass application based on video contents, public API, and procedural timestamp structure. Then, we show a proof-of-concept (PoC) implementation by developing a series of processors for data source, metadata, speech recognition, and user interface (UI) events.
We target self-instruction training scenarios for workouts and cooking where the user’s hands are already pre-occupied as shown in Fig. 2, Fig. 3, and Fig. 4. Compared to the mobile device platform (i.e., a user watching YouTube video while holding a smartphone), users using our application would perform hands-free interaction while watching instructions on the display of the smart wearable glass.

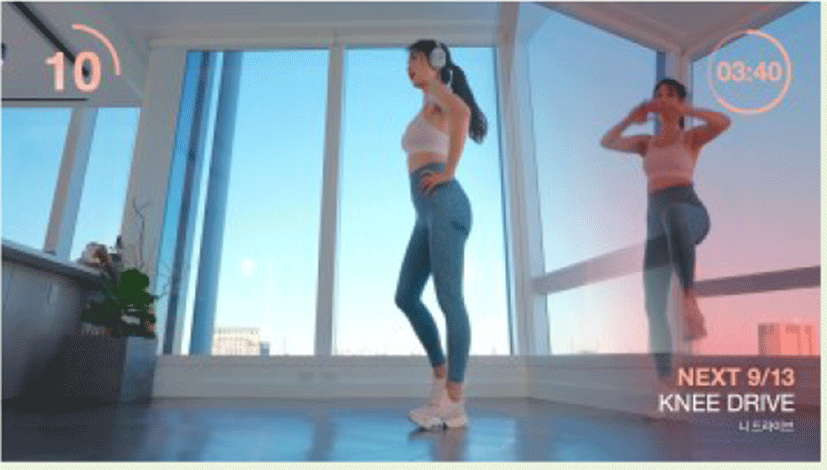

Our workout scenarios involve two sub-use cases. The first use case is when the user performs a workout outside or without full-length mirrors. In this case, the users do not observe themselves performing actual workout as shown in Fig. 2. The second use case is when performing a full-body exercise or training that the users need to evaluate. In this case, the user continuously checks, assesses, and corrects their physical movements if needed as shown in Fig. 3.
Similar concepts of smart mirrors have been introduced [9][10] for training and healthcare purposes, but our application can entirely run on the smart wearable glass using a typical full-length mirror. For example, there are non-wearable approaches. FitMirror [11] is a smart mirror system that analyzes users with a Microsoft Kinect attached to the mirror without any other display device. Virtual fitness options have three categories of online fitness classes, personal training, and equipment-based training as identified in [12]. Our target category is personal training to provide “an experience similar to a one-on-one personal training session” [12] unobtrusively.
Another popular “how-to” video category is cooking. Cooking requires the user to follow instructions on a video. This scenario would be best suited, if the user’s hands are free to use cooking utensils and ingredients as illustrated in Fig. 4. In this case, the users can follow instructions displayed on the display of the smart wearable glass while freely operating their hands. A similar approach was proposed by Papadaki et al. where recipe steps were presented sequentially as regular text or symbolic language for children with cognitive impairments [13].
IV. SELF-INSTRUCTION TRAINING APPLICATION ON WEARABLES

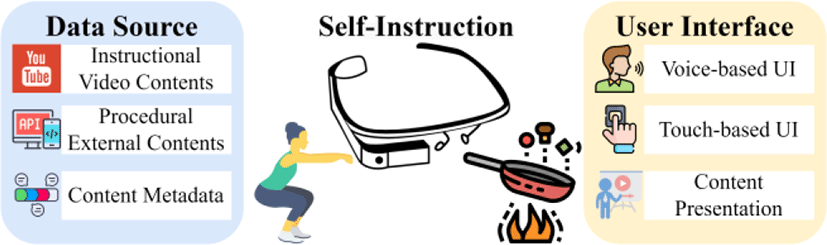

There are three major components in our proposed self-instruction training application on wearables. The three major components are voice-based user interface (UI), instructional contents as data sources, and self-instruction presentation via Google Glass Enterprise Edition 2 (GG EE2). Fig. 5 represents the proposed general framework for a wearable self-instruction application.
Since the user’s hands are preoccupied, we used voice-based UI for interacting with the self-instruction training application on wearables. Voice commands are adopted in several commercial smart glasses such as Google Glass and Microsoft HoloLens. Voice-based UI is problematic in noisy environments, so a noise-free environment is preferred. Also, voice-based UI is suitable for personal use rather than for the shared environment. Lastly, to avoid accidental activation, an accurate voice recognizer is required with a small set of pre-defined commands. Voice-based UI is used as an input modality as well as an output modality. For example, text instructions are narrated by text-to-speech (TTS).
To provide self-instruction, we integrate two types of data sources. The first type is instructional videos found on YouTube. Instructional videos are used to demonstrate a technical process by showing how to do or use something. They are often used for teaching and lectures in form of tutorial and training videos. The second type is public data provided via open APIs. For example, there are open APIs for retrieving cooking recipes and steps in texts (i.e., Korean food and recipe information from National Institute of Agricultural Sciences).
Based on the data source type, self-instruction presentations can take two different formats. If YouTube instructional videos are used as the data source, then the video is played on the smart glass’s display while the user can navigate between instruction steps which are pre-marked by a unique timestamp. If public open data is used as the data source, then the retrieved cooking recipes and steps can be presented as a slide presentation with short keywords, pictures, and TTS-generated narratives. A similar approach was employed in the work of Kim et al. [14], where graphical guidance “composed of a sequence of images that show tasks in nursing skills” [14]. In this work, a physical touchpad was used to navigate between instructions constraining the user’s hands.
V. PROTOTYPE IMPLEMENTATION

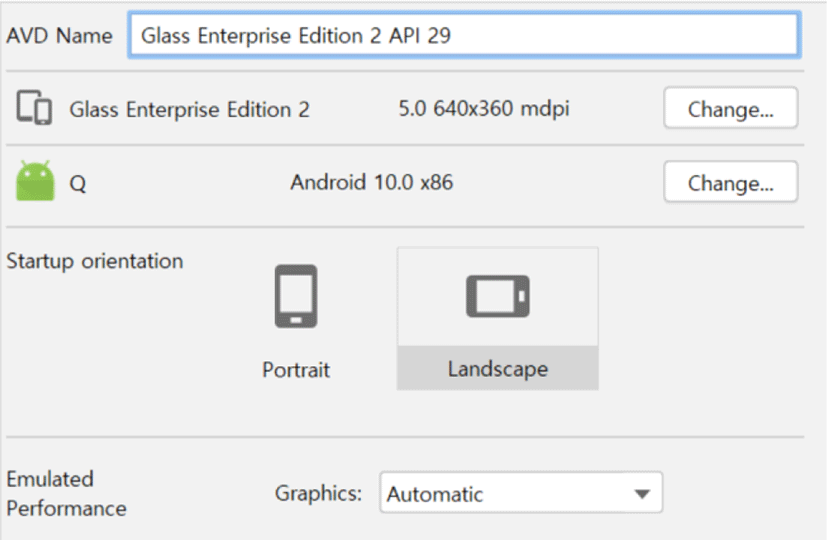

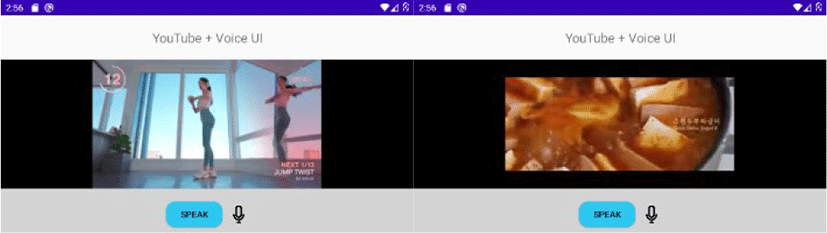

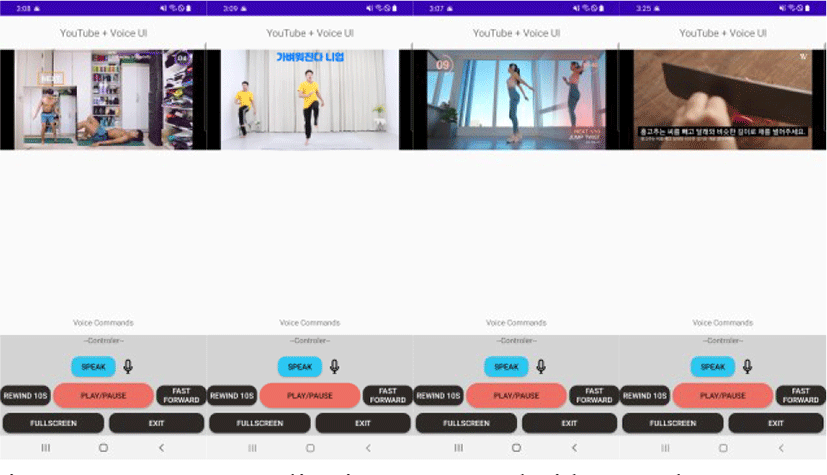

We implemented a prototype of the self-instruction training application as a smartphone application using Samsung Galaxy A31 (SM-A315N) (Fig. 6) and an application on an Android Virtual Device (AVD) emulator using GG EE2 hardware profile (imported hardware profile from https://github.com/googlesamples/glass-enterprise-samples/blob/master/HardwareProfile/glass_ee2_hardware_profile.xml) (Fig. 7), respectively.
Two versions of our application differ in the provided user interface. The smartphone applications also provides several buttons (i.e., touch-based UI) to control the video sources, while the smart glass version provides a simple UI that listens for the user’s voice commands. The smart glass version was designed and implemented targeting Google Glass Enterprise Edition 2, but also can be run on other Android-based smart glasses. For the increased compatibility on Android development, we used an AVD with 640 x 480 resolution and landscape orientation using API level 29 (Android 10.0) as an SDK as shown in Fig. 8.

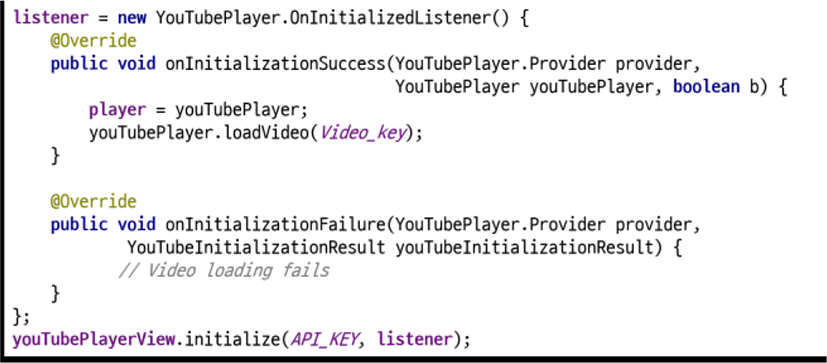

More specifically, we developed our applications using Android Studio (Arctic Fox, 2020.3.1 Patch 2) as an IDE with Java programming language. To playback YouTube videos, we used YouTube Android Player API library (https://developers.google.com/youtube/android/player). This library requires a developer key (i.e., API key) and video id (i.e., YouTube video id) to play YouTube videos on the Android platform. A code snippet using this library with the provided API key and video id is shown in Fig. 9.
Since the user’s hands are preoccupied, we used voice-based UI for interacting with the self-instruction training application on wearables. We used Android API (android.speech.SpeechRecognizer) to implement voice recognition for voice commands. Table 1 shows voice commands for controlling instruction videos. If no procedural timestamps are provided, the rewind and fast forwards skips 10 seconds backward and forward.
| Commands | Korean (Default) | English |
|---|---|---|
| Play/Pause | “재생”, “재생해줘” | “Play”, “Pause” |
| Rewind | “전으로”, “뒤로” | “Rewind” |
| Fast Forward | “앞으로”,”조금후” | “Fast Forward” |
| Fullscreen | “전체화면” | “Fullscreen” |
| Exit | “꺼줘”, “종료” | “Exit” |

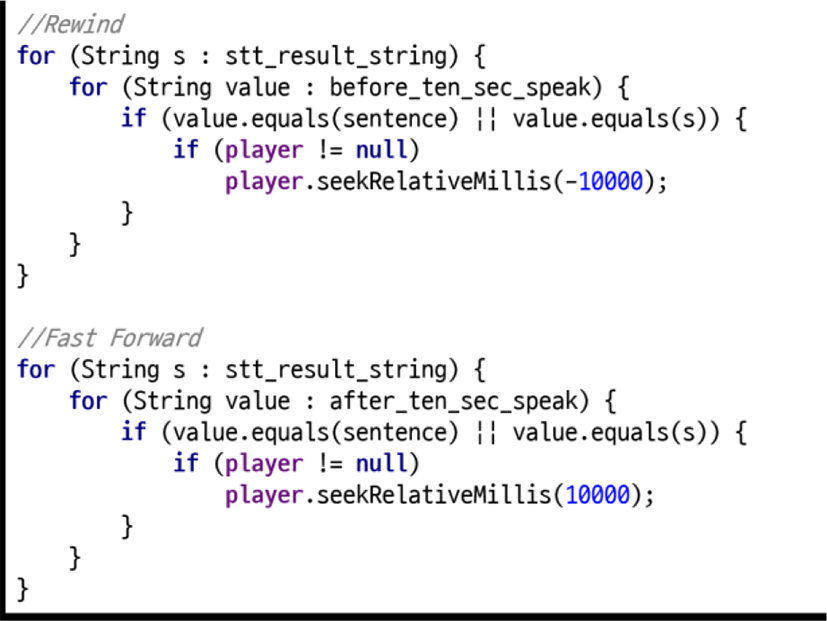

Fig. 10 shows a code snippet for processing voice commands to its equivalent video control commands. A user’s voice command is turned into String type by using Speech-To-Text (STT) using SpeechRecognizer class, (https://developer.android.com/reference/android/speech/SpeechRecognizer). The value in this String variable is compared to find the correct command, then seekRelativeMillis() method with to rewind or fast forward video with the provided relative video position using milliseconds as the unit. A similar approach was explored in CuisiNavi system [15] for the cooking guidance system, but they have explored a gesture recognizer instead of a speech recognizer. Their gesture recognition module detected predefined user activities such as cutting, peeling, and mixing with a timing management module [15].
For preparing YouTube videos as a data source, we used YouTube API. We included 3 cooking videos and 3 workout videos as shown in Table 2 and Table 3, respectively. One of the requirements for quality instructional content was concise video length. We wanted the length of the video to be not too short or long since the user has to wear a smart glass and perform certain types of activities (i.e., cooking and workout) that can easily burden users and increase physical fatigue.
| Instructional Videos | Length (MM:SS) |
|---|---|
https://youtu.be/VoYqcKiqqGE |
3:15 |
https://youtu.be/p9Nn7AqoJpA |
3:24 |
https://youtu.be/AFVw4NLHWx8 3:05 |
3:05 |
| Instructional Videos | Length (MM:SS) |
|---|---|
https://youtu.be/4aI2kfahWP0 |
12:14 |
https://youtu.be/PmCBeGCGgpo |
12:10 |
https://youtu.be/fbYu5yzo4lc |
10:30 |
From the YouTube site, each video’s video IDs are extracted and used in our application to playback the videos with previously mentioned YouTube Android Play API with an API key and a video ID. Video IDs embedded in our application were VoYqcKiqqGE, p9Nn7AqoJpA, AFVw4NLHWx8, 4aI2kfahWP0, PmCBeGCGgpo, and fbYu5yzo4lc which can be also checked and played in a web browser, by adding a prefix of “https://youtu.be/” to each video id.

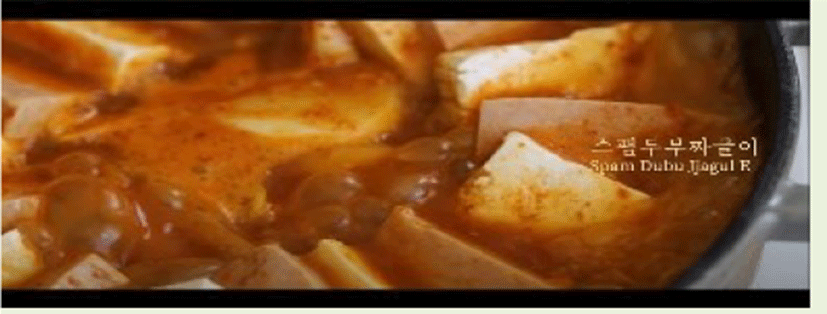

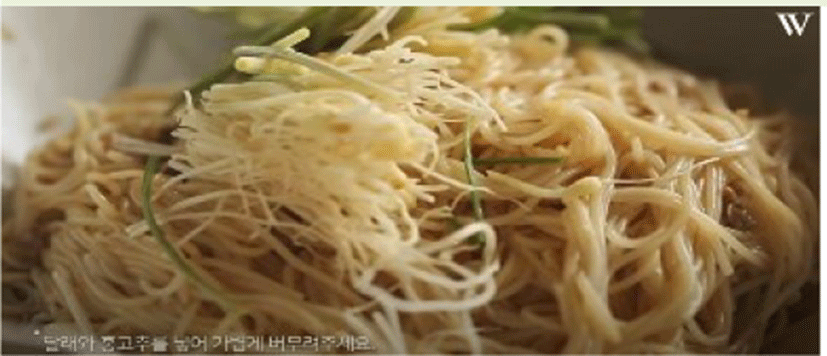

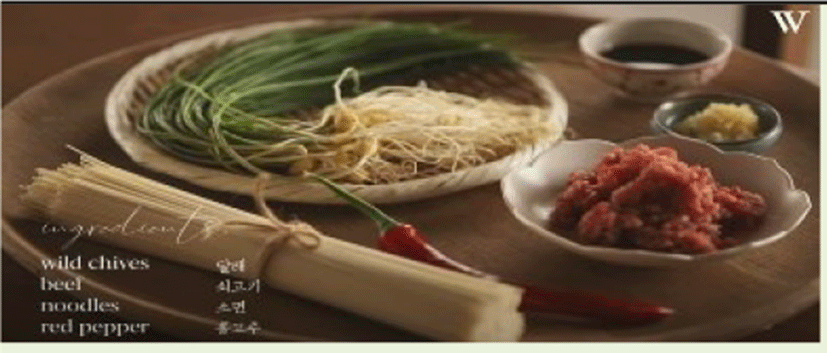

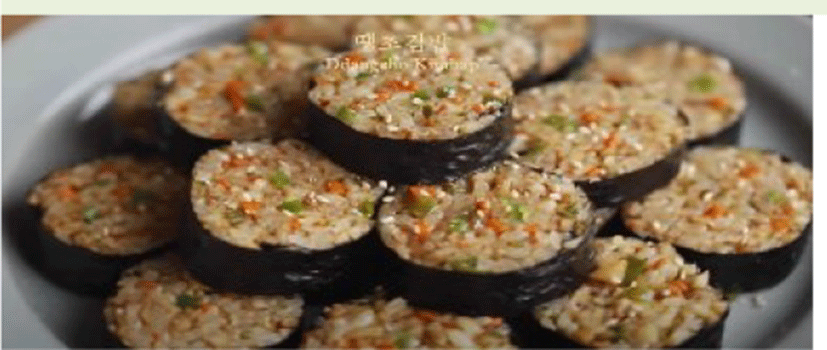

Table 2 shows 3 instruction videos for Korean cooking recipes for Korean noodles with wild chives, ddangcho kimbap, and spam dubu jjaggul e.

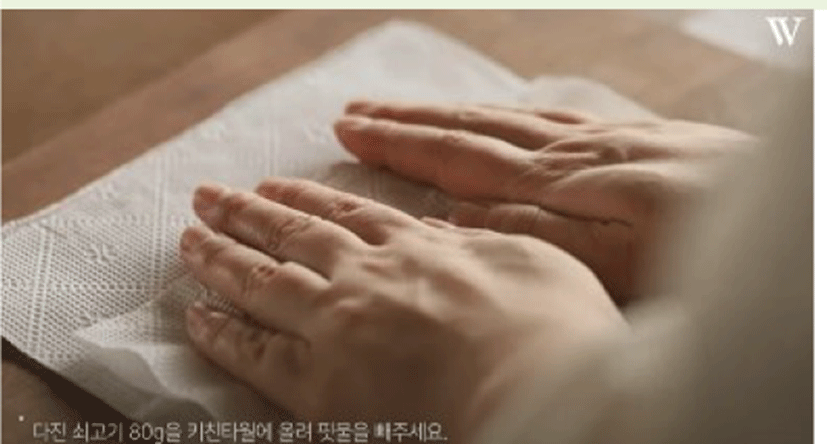

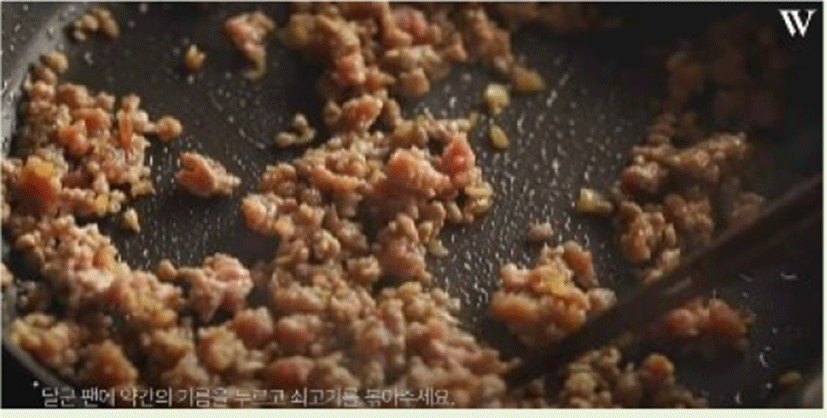

These 6 video contents are manually selected considering that the video has clear steps and procedures. For example, cooking recipes are displayed as a separate insert in cooking videos and step numbers are displayed in workout videos.

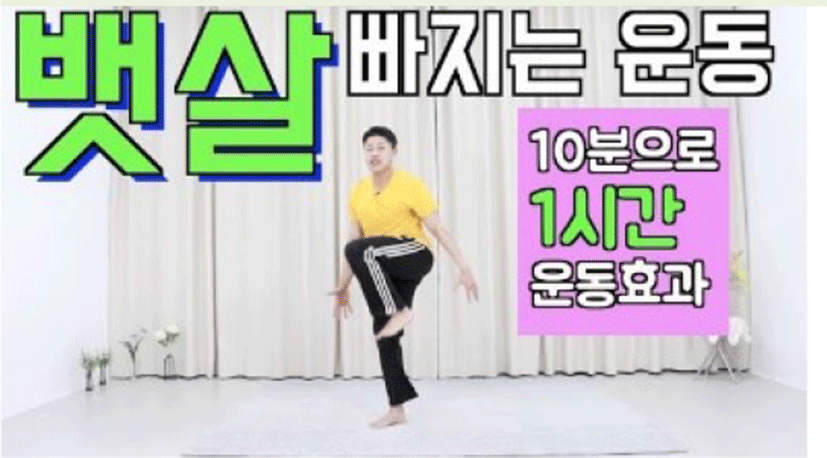

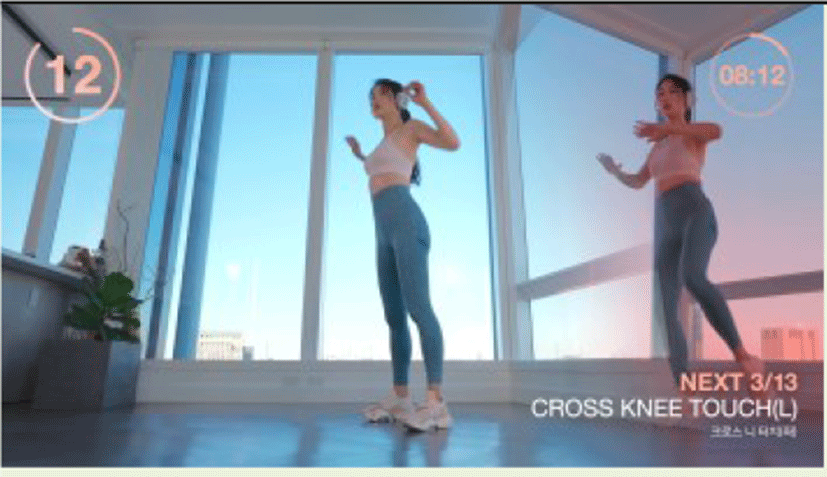

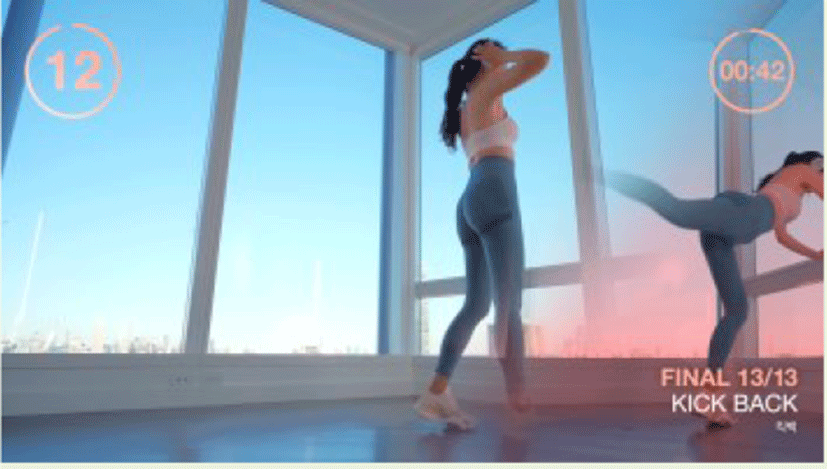

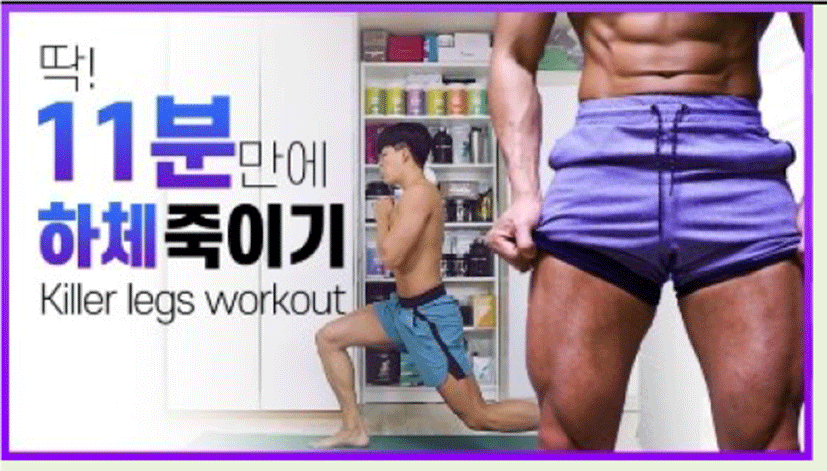

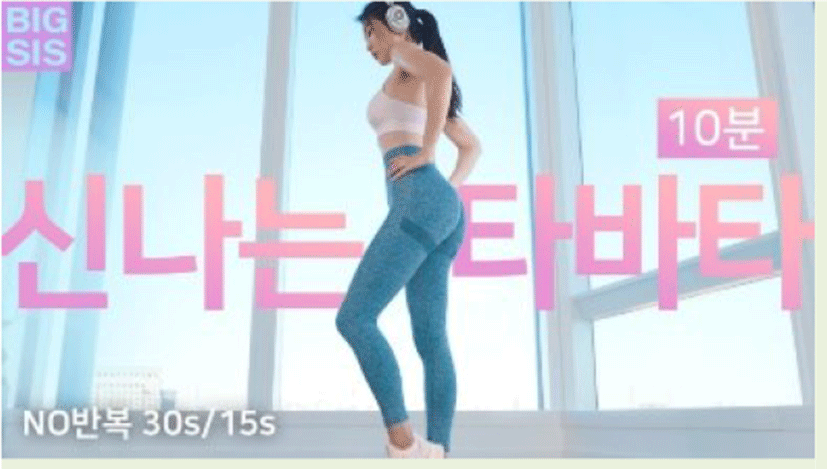

Table 3 shows workout videos for killer legs workout, workout to lose belly fat, and Tabata home training.
Workout videos typically run for 10+ minutes as the user performs in real-time, while cooking videos only run for 3+ minutes with the user’s explicit pauses to follow the instructions. There is one big difference between these two different types of video content. To provide actual workout experience and timing, workout videos are often presented as a one-to-one trainer to trainee style. This characteristic helps even novice users to follow instructions and perform workouts in more proper ways.

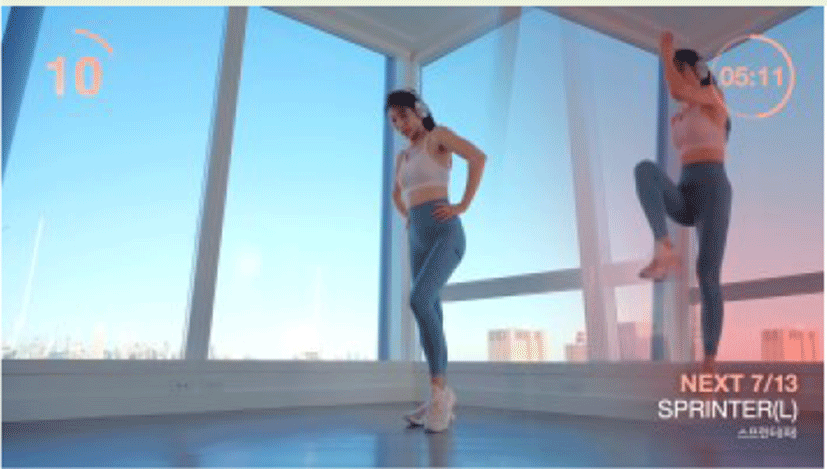

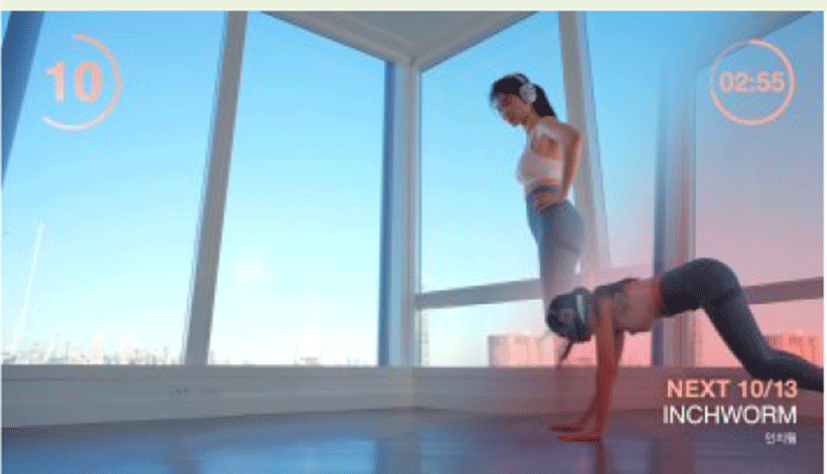

Instruction videos with procedural timestamps such as videos illustrated in Table 4 and 5, can be played backwards and forwards to skip to next or previous procedure/steps.
| Instructional Videos (https://youtu.be/VoYqcKiqqGE) | Timestamp (MM:SS) |
|---|---|
 Introducing ingredients |
0:13 |
 Preparation |
0:17 |
 Cooking step |
0:59 |
 Cooking step |
2:04 |
| Instructional Videos (https://youtu.be/fbYu5yzo4lc) | Timestamp (MM:SS) |
|---|---|
 Cross knee touch |
1:42 |
 Sprinter |
4:42 |
 Knee drive |
6:13 |
 Inchworm |
6:57 |
 Kick back |
9:12 |

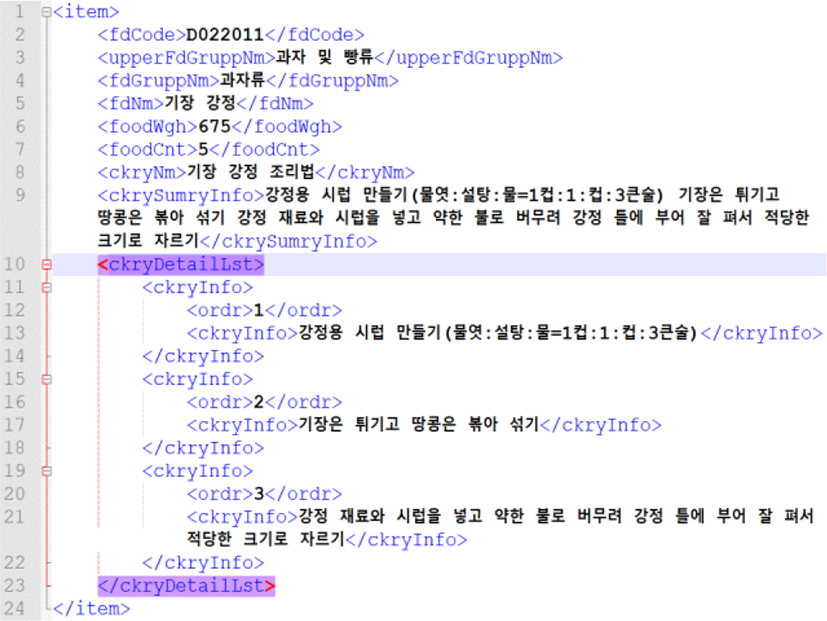

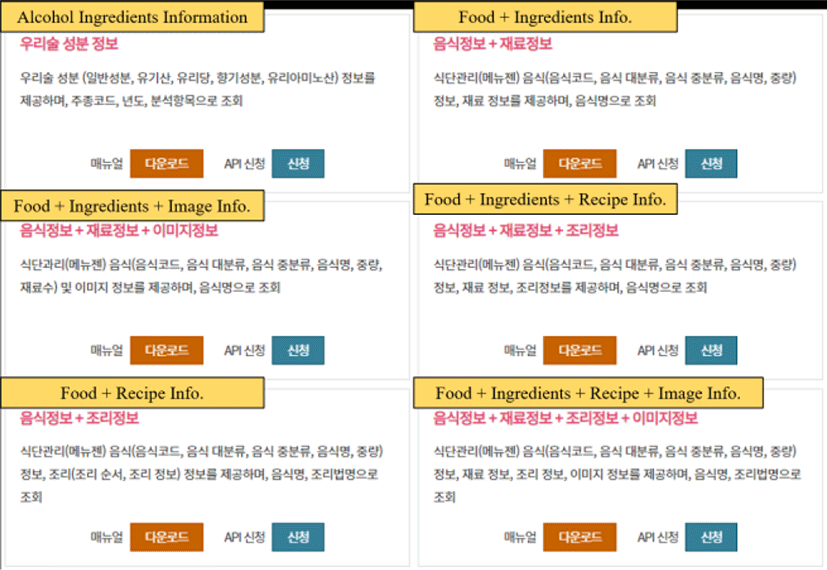

To integrate public data via open API, we tested with Korean Food Recipe API (http://koreanfood.rda.go.kr/kfi/openapi/ckryService) to retrieve cooking recipes and instructions as shown in Fig. 11. In the XML data, we parsed <ckryDetailList>, <ckryInfo>, and <ordr>. The <ordr> elements represent steps and <ckryInfo> elements represent instructions as shown in Fig. 12. By using a similar mechanism, we can use other public data via open API to request data in XML or JSON and extracting relevant elements.
VI. CONCLUSION
In this paper, we designed and implemented a self-instruction training application on wearables that uses rich, high-quality, pre-defined, and external data sources such as YouTube videos and open public data API. By integrating already available external instruction contents, we believe that self-instruction training on wearables can be a feasible and useful application for everyday tasks and casual users. Current version of our prototype needs further work to be ported to the real smart glasses including GG EE2 and Realwear HMT-1. For example, since there are no YouTube App and Google Play Services, currently it is not possible to use YouTube on GG EE2. So, we need to modify the viewer to play stored local instructional videos without YouTube. Also, GG EE 2 uses different APIs for voice commands, so this module should be modified accordingly as well. In future work, we will investigate how to automatically extract and author timestamp and procedural information from instructional videos. With these added automatic timestamp and extraction modules, instructional videos from several data sources can easily be converted to readily-available content for self-instructional application on smart glasses.
