Technical Evaluation of Engineering Model of Ultra-Small Transmitter Mounted on Sweetpotato Hornworm

Isao Nakajima1,*, Yoshiya Muraki1, Kokuryo Mitsuhashi1, Hiroshi Juzoji2, Yukako Yagi3
1Nakajima Labo, Seisa University, Yokohama, Japan, jh1rnz@aol.com
2EFL Inc., Takaoka, Japan, juzoji@yahoo.co.jp
3Department of Pathology & Lab Medicine, Memorial Sloan Kettering Cancer Center, New York, NY, USA. yagiy@mskcc.org
*Corresponding Author: Isao Nakajima, +81-90-8850-8380, jh1rnz@aol.com

© Copyright 2022 Korea Multimedia Society. This is an Open-Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received: Mar 10, 2022; Revised: Apr 12, 2022; Accepted: Apr 27, 2022

Published Online: Jun 30, 2022

Abstract

The authors are making a prototype flexible board of a radio-frequency transmitter for measuring an electromyogram (EMG) of a flying moth and plan to apply for an experimental station license from the Ministry of Internal Affairs and Communications of Japan in the summer of 2022. The goal is to create a continuous low-dose exposure standard that incorporates scientific and physiological functional assessments to replace the current standard based on lethal dose 50. This paper describes the technical evaluation of the hardware. The signal of a bipolar EMG electrode is amplified by an operational amplifier. This potential is added to a voltage-controlled crystal oscillator (27 MHz, bandwidth: 4 kHz), frequency-converted, and transmitted from an antenna about 10 cm long (diameter: 0.03 mm). The power source is a 1.55-V wristwatch battery that has a total weight of about 0.3 g (one dry battery and analog circuit) and an expected operating time of 20 minutes. The output power is −7 dBm and the effective isotropic radiated power is −40 dBm. The signal is received by a dual-whip antenna (2.15 dBi) at a distance of about 100 m from the moth. The link margin of the communication circuit is above 30 dB within 100 m. The concepts of this hardware and the measurement data are presented in this paper. This will be the first biological data transmission from a moth with an official license. In future, this telemetry system will improve the detection of physiological abnormalities of moths.

Keywords: LD50 (Lethal Dose, 50%); Low Dose Exposure; VCXO

I. INTRODUCTION

1.1. Fukishima Nuclear Power Plant Accidaent and Pseudozizeeria Maja Argia

Otaki et al. collected Pseudozizeeria maha in the Fukushima area in May 2011 and found relatively mild abnormalities in some of them [1]. The severity of abnormalities was higher in the F1 offspring obtained from females of the first instar. These abnormalities were inherited by the F2 generation. Experiments have shown that low-dose external and internal exposure of individuals from non-contaminated areas reproduced the same abnormalities. These results indicate that anthropogenic radionuclides from the Fukushima Nuclear Power Plant have caused morphological and genetic damage to Pseudozizeeria maha. However, only morphological abnormalities such as wing shape and wing pattern were recorded [2-6]. The effects on physiological function are unknown.

1.2. Persistent Low-Dose Exposure

Lethal dose 50 (LD50), a measure of acute toxicity, refers to the amount of pesticide or radiation that kills half of the exposed individuals. Sustained low-dose exposure to pesticides and radiation cannot be assessed simply on the basis of LD50; however, no optimal criteria have been reported. LD50 is the rate of survival, not a measure of physiological dysfunction in healthy organisms due to exposure [7-10].

This study aims to detect the impairment of motor function in insects exposed to sustained low concentrations of radiation by monitoring their physiology and detecting the impairment of flap reduction and peak-to-peak temporal fluctuations (Δt). Biotelemetry can be used to transmit moth physiological data. The battery limits the amount of data that can be recorded. Nevertheless, data from moths pinned to a platform can be compared and evaluated [11-22].

II. PREPARATORY EXPERIMENTS

A physiological experiment was performed by hanging a moth was suspended using pins that were connected to copper wires (Fig. 1 and Fig. 2). The hawkmoth periodically contacts the muscles inside the exoskeleton, resulting in deformation of the exoskeleton and the movement of the feathers connected by the “hinge” up and down. Fig. 3 shows the anatomy of primary flight muscles those of two have a cycles: The Dorsal Ventral Muscle (DVM) contract, causing a down-strok that creates life. Therefore, electrodes are inserted into two muscle groups. The preliminary experiments were conducted as follows. We recorded a two-channel electromyogram (EMG) and the angular velocity corresponding to the pitch angle associated with wing flapping for 100 sweetpotato hawkmoths (Agrius convolvuli)(Fig. 4), 50 females and 50 males) with the animals suspended and constrained in air. Overall, the angular velocity and amplitude of the EMG signals had a high correlation, with a correlation coefficient of R = 0.792. An analysis of the peak-to-peak EMG intervals, which correspond to the RR intervals of ECG signals, indicated a correlation between Δt fluctuation and angular velocity of R = 0.379. Thus, the accuracy of the regression curve was relatively poor. What is Δt, in other words, is the origin of the temporal fluctuation of the flapping cycle that is defined as Δt here.

jmis-9-2-145-g1
Fig. 1. Lateral view of sweetpotato hornworm.
Download Original Figure
jmis-9-2-145-g2

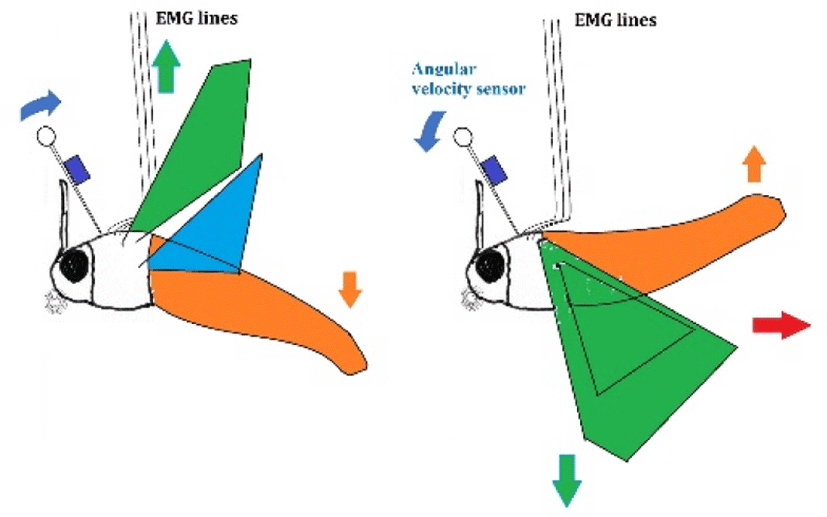

Fig. 2. Monitor of EMGs and angular velocity with pins linking copper wires.
Download Original Figure
jmis-9-2-145-g3

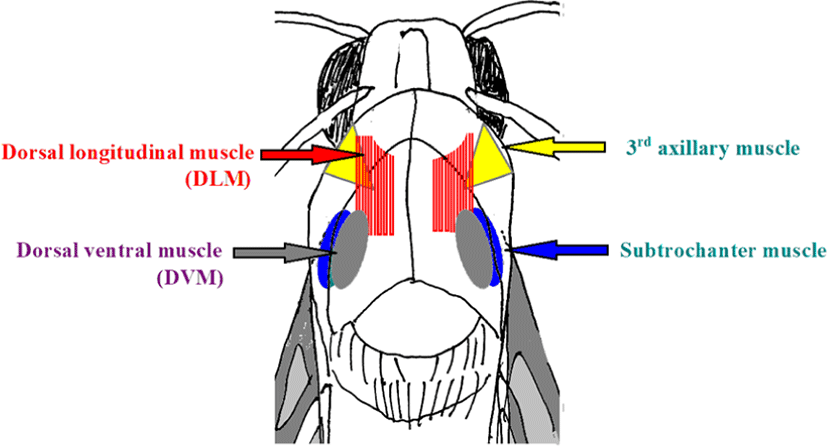

Fig. 3. Anatomy of muscles.
Download Original Figure

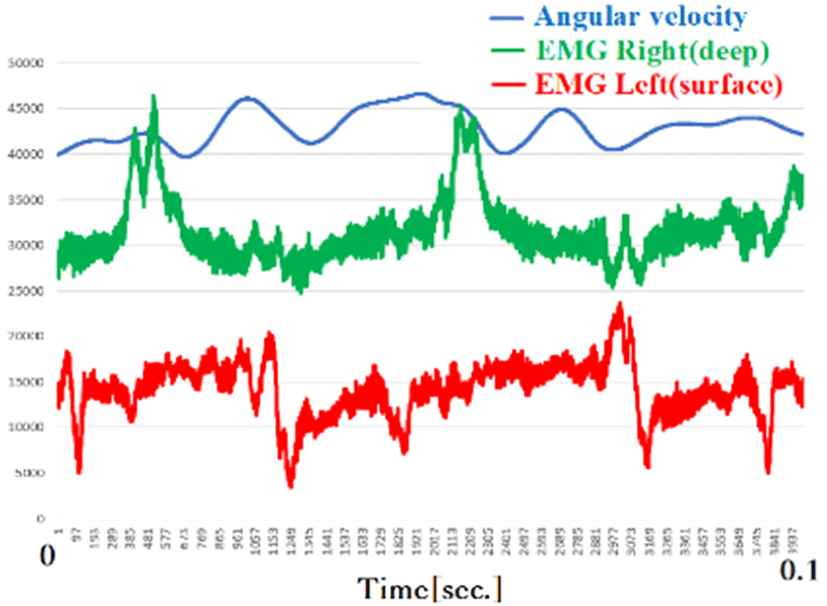

jmis-9-2-145-g4
Fig. 4. Obtained EMG data and angular velocity, the muscles of DLM is green and DVM is red line.
Download Original Figure

For such a physiologically abnormal state when flight is restrained by a copper wire, there is a possibility that a statistically significant difference from the EMG at free flight. The Δt of peak-to-peak flapping cannot be obtained using the copper wire that perfectly ignore own lift force. The fluctuation of Δt is the time when Ca ions are replenished to the muscle fibers, and this work is considered to be intermittent. It is thus necessary to conduct experiments with free flight.

Using a dc amplification circuit without capacitive coupling as the EMG amplification circuit, we confirmed that the baseline changes at the gear change point of wing flapping.

The lift provided by the wing can be expressed as angular velocity × thoracic weight - air resistance - eddy resistance due to turbulence. In future studies, we plan to attach a micro radio transmitter to the moths to gather data on potential energy, kinetic energy, and displacement during free flight for analysis. Such physiological functional evaluations of moths may give insight into damage to insect health due to repeated exposure to multiple agrochemicals and may lead to significant changes in toxicity standards, which are currently based on LD50 values.

III. METHODS

3.1. The Outline of the Biotelemeroty System

Hanging a moth by a copper wire and measuring the EMG signal in a restrained state does not replicate the physiological state. If EMGs from moths could be measured during free flight, there is a possibility of obtaining correlations between EMG peak-to-peak fluctuations and lift that could not be obtained in the restrained state. Therefore, we developed a biotelemetry system and measured flight data recorded for approximately 100 m. The average weight of the moths was 1.1 g. Based on empirical data, we considered that an additional 0.28−0.33 g (25%−30% of the moth weight) could be added. The concept of the biotelemetry system is shown in Fig. 5 and the weights of the main components are listed in Table 1.

jmis-9-2-145-g5

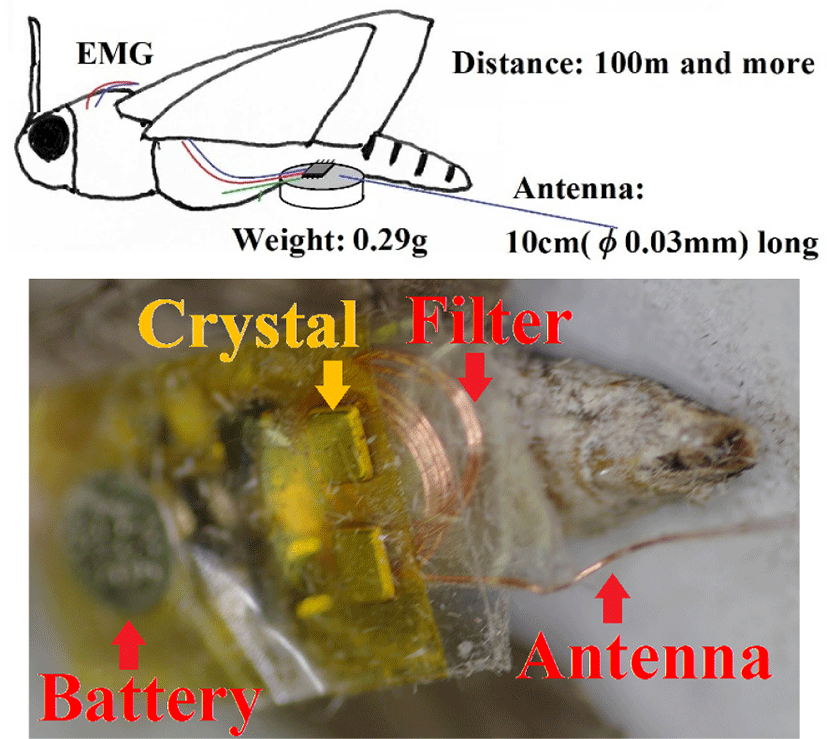

Fig. 5. Concept of the engineering model.
Download Original Figure
Table 1. List of the parts and weight.
Parts Weight [g]
Battery 0.1
VCXO 0.08
Microchips 0.05
Solder + copper wire 0.02
Filter+antenna 0.01
Total 0.29
Download Excel Table
3.2. Block Diagram

The electric potential of the muscle that plays an active part in the flapping of a moth (EMG) was acquired with three electrodes and amplified by a factor of 134 using an operational amplifier. The change in the electric potential is converted into a change in frequency (frequency modulation). Spurious signals are removed with a buffer amplifier and the remaining signals are transmitted at a radio-frequency (RF) power of −7dBm. A block diagram of the transmitter is shown in Fig. 6.

jmis-9-2-145-g6

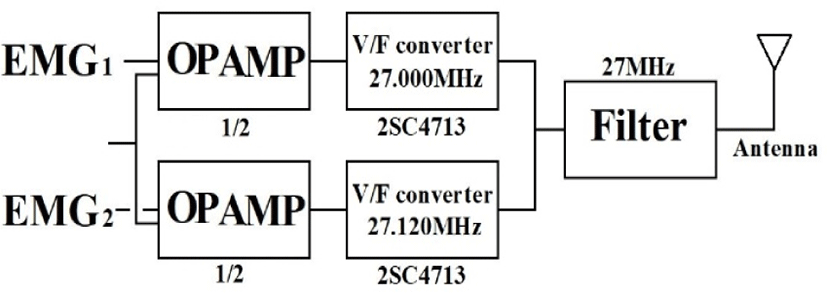

Fig. 6. Block diagram of the transmitter.
Download Original Figure
3.3. Battery and Power Consumption

For the proposed device, the battery capacity is limited to 8 mAh. Therefore, if the current of the bipolar transistor (2SC4713) in the final stage of the transmitter is not suppressed, the battery will be exhausted immediately. The transmission power can be adjusted by changing the resistance R connected to the emitter of the bipolar transistor. A current of approximately 20 mA flows when R=35 Ω and the operation time is about 24 minutes (Fig. 7). The RF maximum output is 1 mW (0 dBm). Table 2 shows the battery (Sony SR416SW) specifications and Table 3 shows compatible batteries manufactured by other companies.

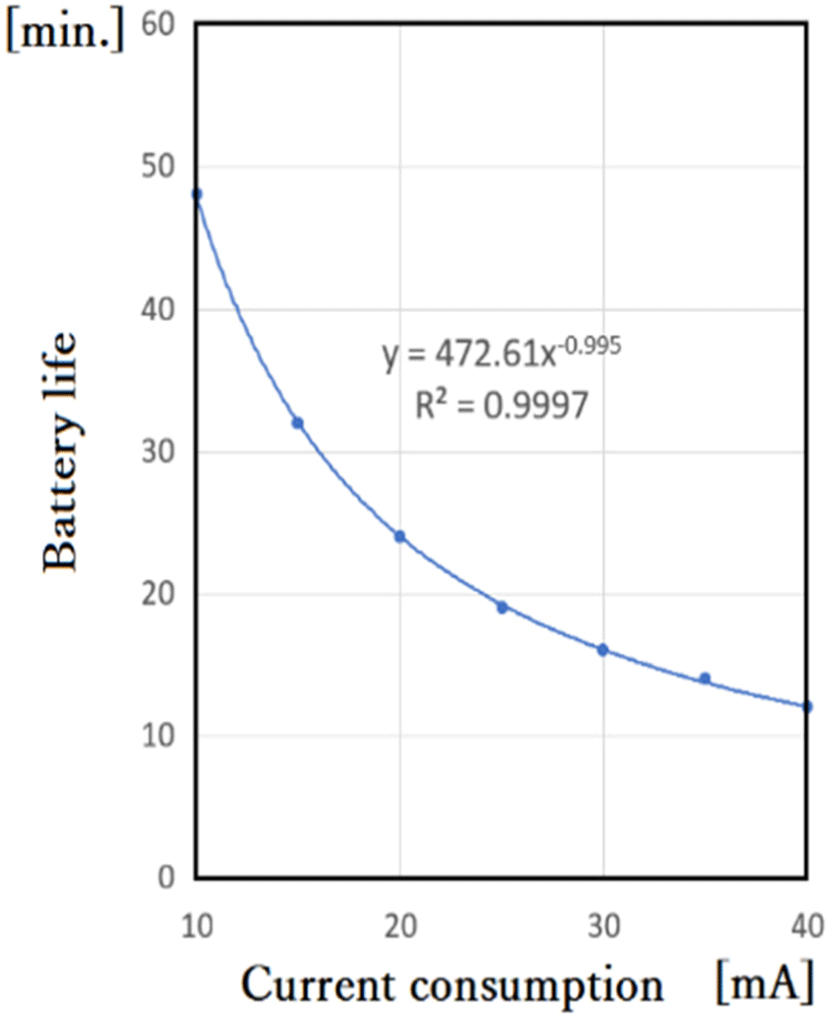

jmis-9-2-145-g7
Fig. 7. Current and battery life.
Download Original Figure
Table 2. Specification of the battery.
Specification Standard SONY SR416SW
Type Silver oxide battery
Nominal voltage 1.55 V
Capacity 8 mAh
Size Diameter 4.8 mm × Height 1.65 mm
Weight 0.1 g
Download Excel Table
Table 3. Button battery product compatibility.
SONY SR416SW
ENERGIZER 337
RAYOVAC 337
RENATA 337
BULOVA 623
SEIKO SB-A5
CITIZEN 280-75
GP GP337
Download Excel Table
3.4. Free Space Path Loss

According to the license requirements, a filter was inserted to suppress spurious signals for a transmission power of 1 mW. The free space path loss is calculated bythe following equation. The simulation of free space path loss was performed by MATLAB 2018 on Windows 10 environment.

FSPL =20×log(4×π×d/λ)

π: Pai(3.1415)

d: Distance (m)

λ: Wavelength (m) = c/f

c: Light speed (m/s)

f: Frequency (Hz)

Considering the gain of the transmitting antenna and the gain of the receiving antenna, it can be rewritten as the following Equation (1).

F S P L = 20 l o g ( d ) 10 + 20 l o g 10 ( f ) + 32.44 G t G r .
(1)

Gt: Transmitting antenna gain (dB)

Gr: Receiving antenna gain (dB)

Because the antenna on a moth is only 10 cm long (diameter: 0.03 mm), efficiency is poor (effective isotropic radiated power: −40 dBi). Fig. 8 shows the free space path loss when the receiving side uses a 1/2λ dipole antenna. A filter must be inserted to suppress spurious signals to −50 dB or less than the main radio wave, as required by law. The bipolar transistor (2SC4713) of the buffer has an amplification ratio of about 8, ensuring an output of 0 dBm (Fig. 8).

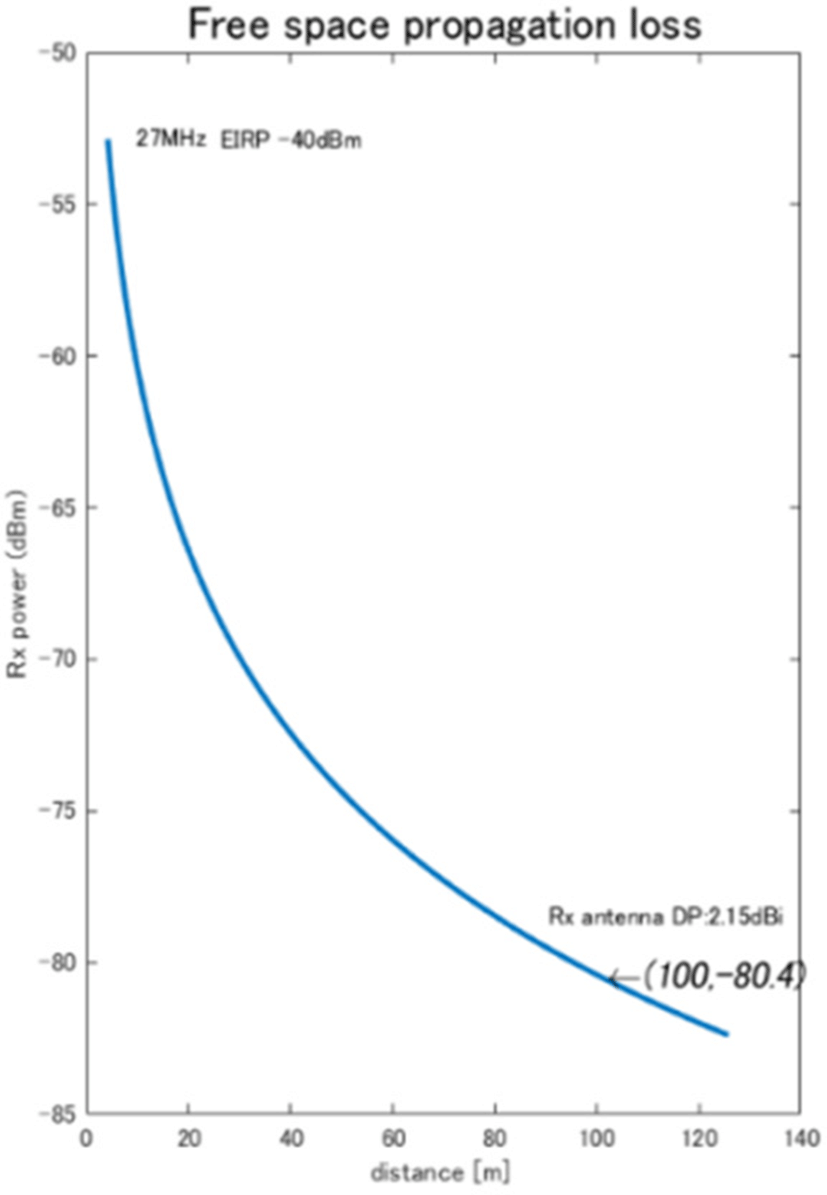

jmis-9-2-145-g8
Fig. 8. Free space path loss.
Download Original Figure
3.5. Voltage-Frequency Conversion

The EMG of the moth was amplified with the gain of 134 using an operational amplifier (NJU77002RB, JRC) and charged in the variable-capacitance diode of the crystal transmission part. The change in the capacitance of the variable-capacitance diode caused a change in the frequency of the crystal oscillator. This setup is called a voltage-controlled crystal oscillator (VCXO). The relationship between the added control voltage and frequency is shown in Fig. 9. The potential change from 0 to 1.5 V is within the bandwidth of 4 kHz. The relationship between output power and load potential is shown in Fig. 9, Fig. 10 and Fig. 11.

jmis-9-2-145-g9

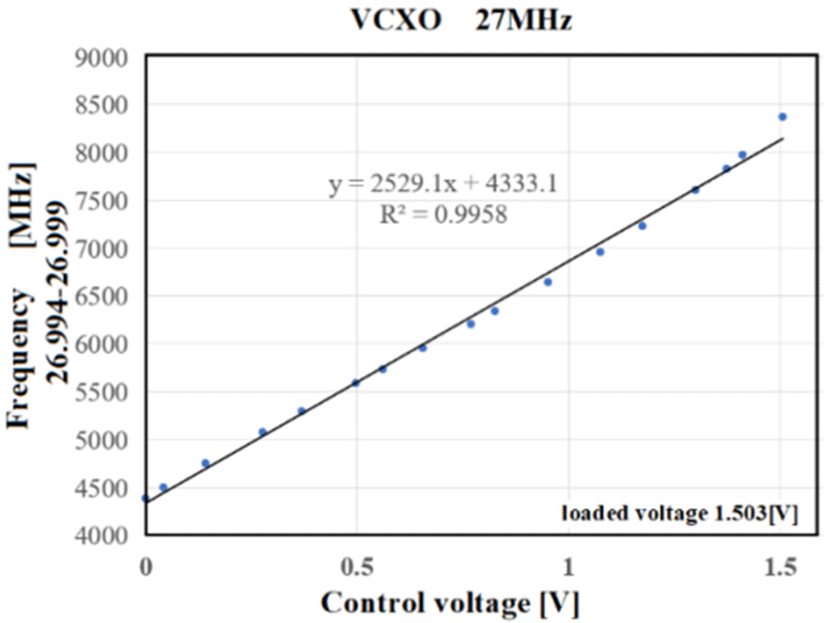

Fig. 9. Relationship between output power and load potential.
Download Original Figure
jmis-9-2-145-g10

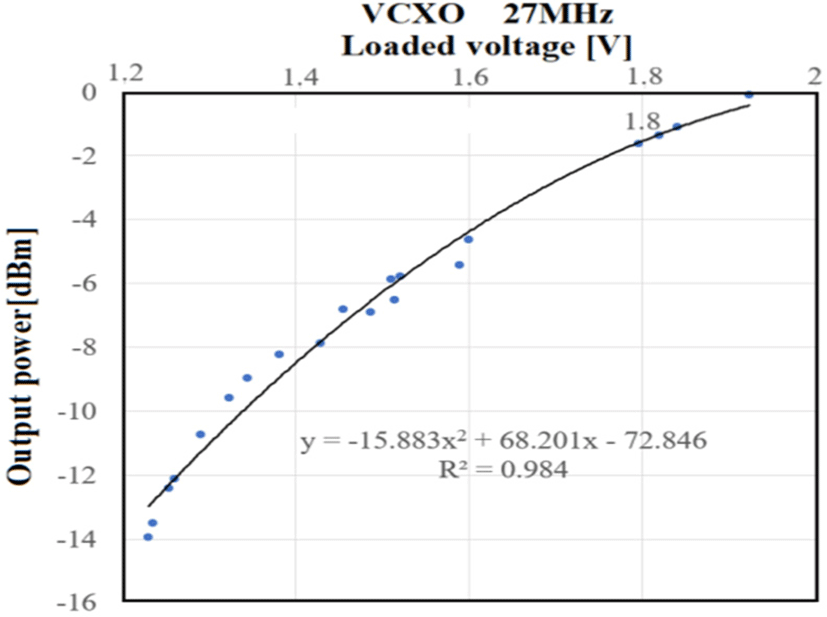

Fig. 10. Loaded voltage and output power of the VCXO.
Download Original Figure

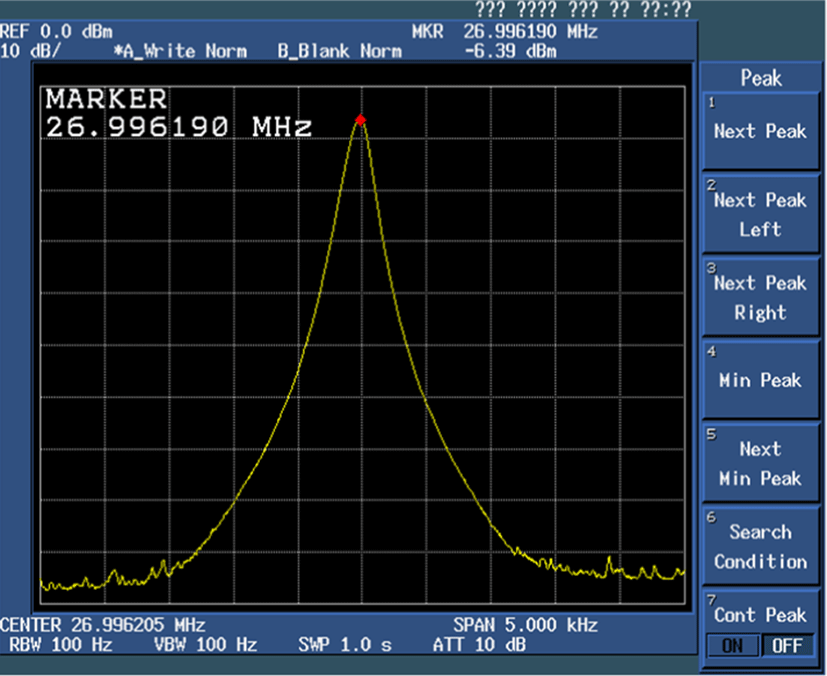

jmis-9-2-145-g11
Fig. 11. Monitor of the output power-7dBm with spectrum analyzer.
Download Original Figure
3.6. Results of the Experiment

We soldered the devices and components to be mounted on the moth and electrically tested the engineering model before ordering the flexible board. Battery consumption is about 20 minutes if the total current is about 25 mA. The propagation distance is about 100 m, simulated from the free space path loss equation. The V / F conversion was linear, and the RF, especially the power −7 dBm, was stable and satisfactory.

IV. CONSIDERATIONS

4.1. Challenges in Mounting on Flexible Board

Based on the above experimental results, we manufactured a flexible substrate exclusively for hawkmoths, so the points to be noted from design to mounting are described below. For mounting, a flexible substrate with a thickness of 0.2 mm and double-sided copper foil was used as the preliminary board. In this circuit, most of the back side is the ground, and since it is soldered by hand of a skilled worker in the preliminary stage, sufficient space is taken between the parts for the purpose of distributing heat (Fig. 12) After burning the wiring of the pattern, the time to remove the water from the both layer adhering to the substrate varies depending on the pattern configuration. If the ground is relatively wide like this board, it has a heat dissipation effect, and moisture can be removed by overheating at 120 C degree for about 30 minutes. It is possible to make it even narrower for small fly. In the future, if it is to be mounted on small moths and butterflies, it would be possible to be narrowed about 64% (verstical×horizontal= 4/5×4/5=0.64) in size. These conditions reflect the technical level of the laboratory, and if it can be developed commercially, that is, if the budget can be secured, it is desirable to commercialize a dedicated IC as a V/F device (VCXO).

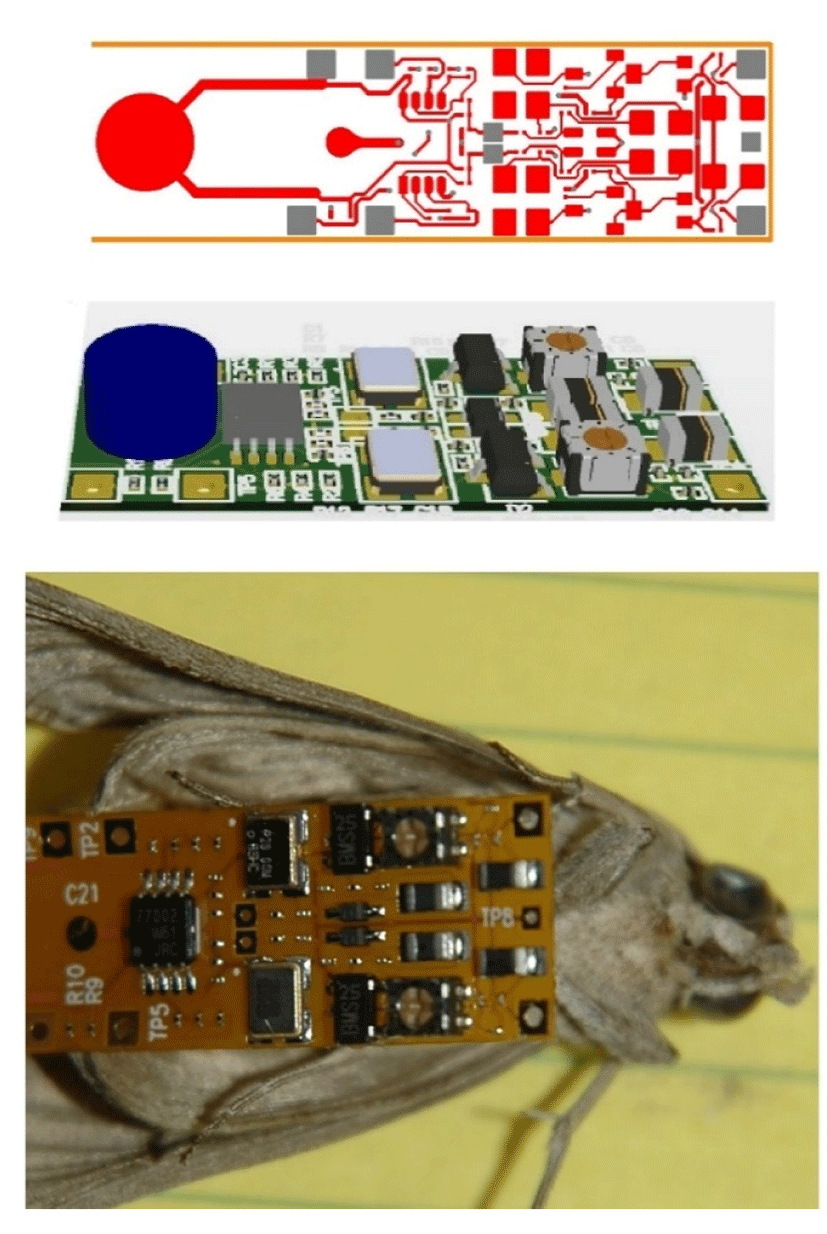

jmis-9-2-145-g12
Fig. 12. Upper: Wiring diagram of the prototype board, middle: 3D mockup of parts, lower: Completed flexible board.
Download Original Figure
4.2. Multi-Functionalization with Limited Weight

Since the weight of the payload has an upper limit of about 0.28g, we would like to consider carrying two functions with one transistor by the following two methods, and conduct verification experiments in the future. Many papers on techniques for multiplexing with one device and quadrature modulation have been published in the past [23-35].

4.2.1. Two Channels Via Orthogonalization

Because frequency modulation (FM) is used for the first channel, a second channel can be created using amplitude modulation (AM) on the orthogonal axis. However, the disadvantage is that the signal leaks out during FM demodulation if the frequency component of the AM is high due to the group delay characteristic of the detection of the receiver. The first channel, FM, is suitable for EMG with high-frequency components, and the second channel, AM, is suitable for angular velocity with a relatively slow wave motion.

A dual-gated field-effect transistor (e.g., 3SK284, 3SK73) is used for cascade amplification and resistor R2 is used to adjust the bias to modulate the Gate-2 voltage from −0.1 to −0.4 V. If the signal goes to zero, the FM signal cannot be demodulated. Gate-1 is designed to handle crystal oscillation (Fig. 13 and Fig. 14).

jmis-9-2-145-g13

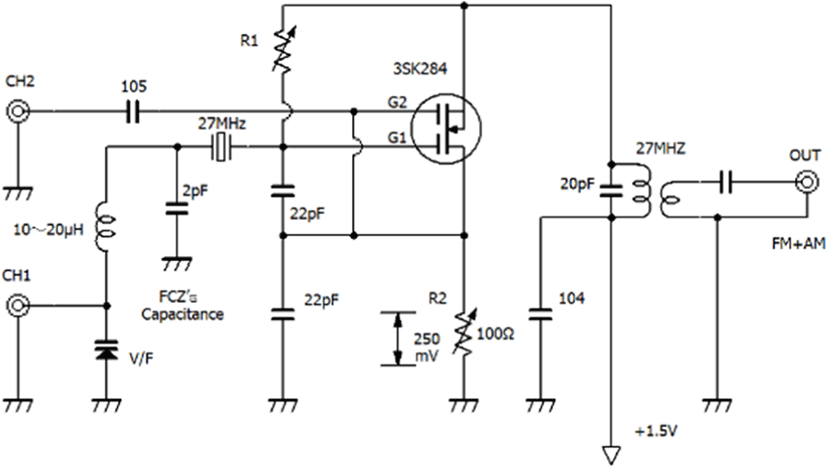

Fig. 13. Idea of orthogonalization modulation with a dual-gated FET.
Download Original Figure

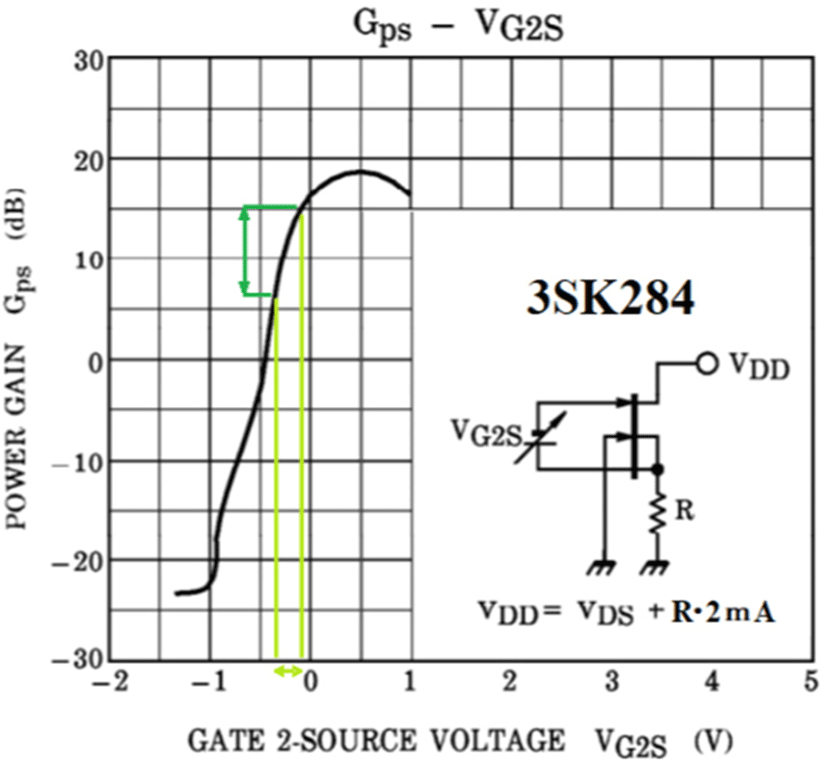

jmis-9-2-145-g14
Fig. 14. Suitable voltage for the Gate-2.
Download Original Figure
4.2.2 Weight Reduction using Reflex System

A system that amplifies two signals with one amplifier circuit is called a reflex system. Such systems have been implemented in middle- or short-wave receivers. A reflex radio amplifies and detects an RF signal and in parallel amplifies an audio frequency (Fig. 15). A single amplification circuit is used for both RF amplification and audio frequency amplification. Based on this concept, a single transistor can be used for the high-frequency crystal oscillation circuit and the low-frequency biological signal amplification. Because the low-frequency amplification cannot achieve a gain of 20 dB, the resolution in the amplitude direction is lower than that of an operational amplifier. As a countermeasure, the capacitance of the varactor diode can be increased, which will expand the frequency band, increase the FM coefficient, and lead to diffusion gain, compensating to a certain degree for the low resolution. Experiments are required to evaluate the implementation.

jmis-9-2-145-g15

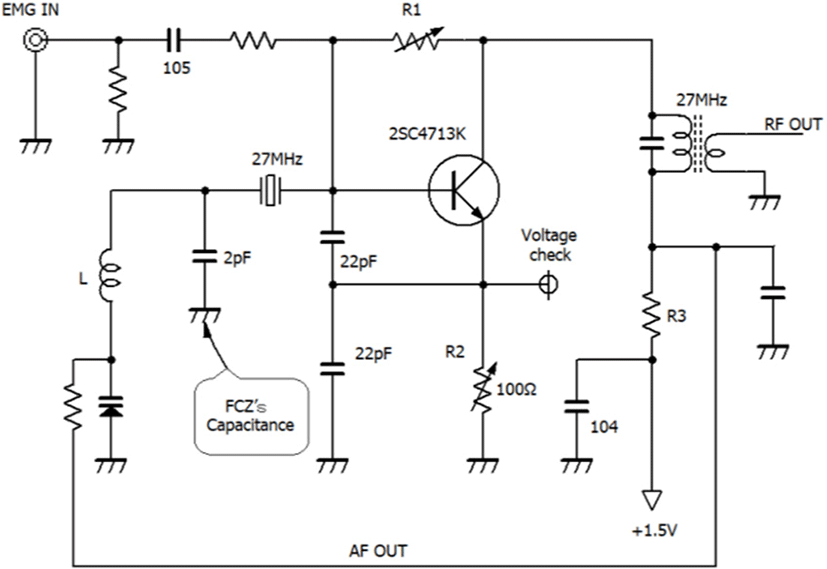

Fig. 15. Idea of the reflex system.
Download Original Figure
4.3. Reasons for New Measurement with ICT to Replace LD50

Genetic damage from radiation isotope exposure, sperm, eggs, or immediately after fertilization has been studied. However, we believe that the oxidation of genes in the cells, nucleior mitochondria DNA associated with continuous exposure of low concentrations during the growth process results in a decrease of the function of the living body.

Focusing on the fact that the muscle of Sweetpotato Hornworm is greatly differentiated at the 1st to 3rd instar, low-concentration continuous exposure→cell oxidation→damage to muscle mitochondrial DNA→decrease in ATP in the muscle→decrease in uptake of Ca ions from T tube→Myoelectric potential decreases.

As an experimental model, we think that it is possible to put a radioisotope in the artificial feed of Sweetpotato Hornworm and expose it internally, and measure the flight EMG. We are aiming to find the correlation between the amount of radiation loaded on food and the amplitude of the electromyogram.

LD50, which is an index so far, is an index of the acute phase in which 50% of individuals die, and this is not an index of the chronic phase. In the chronic phase, the value of 1/1000 (for example) of LD50 is simply applied. Anyone can judge which is more scientific.

V. CONCLUSION

We developed an engineering model of a transmitter for obtaining an EMG of a moth in free flight. From a technical perspective, future development efforts should consider that one element in the reflex system or the cascade method should have multiple functions. If electronic device technology that can quantify EMG during free flight were developed, the detection of physiological abnormalities would allow a physiological standard that replaces the LD50-based standard for continuous low-dose exposure to pesticides and radiation.

ACKNOWLEDGEMENT

We wish to thank Professor Noriyasu Ando of the Maebashi Institute of Technology, who provided the moths used in the present study. We also deeply thank the timely help given by Prof. Kiyoshi Kurokawa, the National Graduate Institute for Policy Studies. This experimental research was assisted by Ms. Miyoshi Tanaka and Ms. Hiroko Ichimura of Nakajima Labo. Tokai University, Ms. Machiko Yoda and Ms. Megumi Amano of Seisa University.

The flexible board of the transmitter was assembled by Japan System Design Inc. Hiroshima City, Japan. The patent included in this research has been applied by Tasada Works Inc. Takaoka City, Japan.

REFERENCES

[1].

K.Sakauchia, W. Tairaab, and A. Hiyam. et al., “The pale grass blue butterfly in ex-evacuation zones 5.5 years after the Fukushima nuclear accident: Contributions of initial high-dose exposure to transgenerational effects,” Journal of Asia-Pacific Entomology, vol. 23, no. 1, pp. 242-253, 2020.

[2].

J. Otaki, “Fukushima’s lessons from the blue butterfly: A risk assessment of the human living environment in the post-Fukushima era, Integrated Environmental Assessment and Management, vol. 12, no. 4, pp. 667-672, 2016.

[3].

J. Otaki and W. Taira, “Current status of the blue butterfly in Fukushima research,” Journal Heredity, vol. 109, no. 2, pp. 178-187, 2018.

[4].

J. Otaki, A. Hiyama, A., M. Iwata., and T. Kudo, “Phenotypic plasticity in the rangemargin population of the lycaenid butterfly Zizeeria maha,” BMC Evolutionary Biology, vol. 10, no. 1, pp. 252, 2010.

[5].

J. Otaki, Understanding Low-dose exposure and field effects to resolve the field laboratory paradox: Multifaceted biological effects from the Fukushima nuclear accident,” in N. S. Awwad, S. A. AlFaify (eds.). New Trends in Nuclear Science, London: Intech Open., 2018.

[6].

J. Otaki and W. Taira, “Current status of the blue butterfly in Fukushima research,” Journal of Heredity, vol. 109, no. 2, pp. 178-187, 2018.

[7].

R. Isenring, Pesticides and the Loss of Biodiversity, Pesticide Action Network Europe, March 2010. https://www.pan-europe.info/old/Resources/Briefings/Pesticides_and_the_loss_of_biodiversity.pdf

[8].

Beyond pesticides, “Impacts of pesticides on wildlife,” May 2020, https://www.beyondpesticides.org/programs/wildlife.

[9].

M. DiBartolomeis, S. Kegley, P. Mineau, R. Radford, and K. Klein, “An assessment of acute insecticide toxicity loading (AITL) of chemical pesticides used on agricultural land in the United States,” PLOS-ONE, vol. 14, no. 8, 2019.

[10].

J. Lundgren and S. Fausti, “Trading biodiversity for pest problems,” Science Advances, vol. 1, no. 6, Jul. 2015.

[11].

K. Suzuki and T. Inamuro, “An improved lattice kinetic scheme for incompressible viscous fluid flows,” International Journal of Modern Physics C, vol. 25, no. 1, 2014.

[12].

M. Shindo, T. Fujikawa, and K. Kikuchi, “Analysis of roll rotation mechanism of the butterfly for development of a small flapping robot,” in The 3rd International Conference on Design Engineering and Science (IC DES), vol. 3, 2014.

[13].

F. Lehmann and S. Pick, “The aerodynamic benefit of wing-wing interaction depends on stroke trajectoryin flapping insect wings,” Journal of Experimental Biology, vol. 210, no. 8, pp. 1362-1377, 2007.

[14].

S. Hassler, Winged Victory: Fly-Size Wing Flapper Lifts Off,” IEEE Spectrum, 2008, https://spectrum.ieee.org/aerospace/aviation/winged-victory-flysize-wing-flapper-lifts-off

[15].

T. Deora, N. Gundiah, and S. Sane, “Mechanics of the thorax in flies,” Journal of Experimental Biology, vol. 220, no. 8, pp. 1382-1395, 2017.

[16].

K. Nakada and J. Hata, “Development and physiological assessments of multimedia avian esophageal catheter system,” Journal of Multimedia Information System, vol. 5, no. 2, pp. 121-130, Jun. 2018.

[17].

I. Nakajima, H. Juzoji, K. Ozaki, and N. Nakamura, “Communications protocol used in the wireless token rings for bird-to-bird,” Journal of Multimedia Information System, vol. 5, no. 3, pp. 163-170, Sep. 2018.

[18].

K. Nakada, I. Nakajima, J. Hata, and M. Ta, “Study on vibration energy harvesting with small coil for embedded avian multimedia application,” Journal of Multimedia and Information Systems, vol. 5, no. 1, pp. 47-52, Mar. 2018.

[19].

N. Ando, I. Shimoyama, and R. Kanzaki, “A dual-channel FM transmitter for acquisition of floght muscle activities from the freely flying hawkmoth, Agrius convolvuli,” Journal of Neuroscience Methods, vol. 115, no. 2, pp. 181-187, 2002.

[20].

M. Shimoda, M. Kiuchi, “Oviposition behavior of the sweet potato hornworm, Agrius convolvuli (Lepidoptera; Sphingidae), as analysed using an artificial leaf,” Applied Entomology and Zoology, vol. 33, no. 4. pp. 525-534, 1998.

[21].

A. Zagorinskii, O. Gorbunov, and A. Sidorov, “An experience of rearing some hawk moths (Lepidooptera, Sphingidae) on artificial diets,” Entomological Review, vol. 93, no. 9, pp. 1107-1115, 2013.

[22].

I. Nakajima and Y. Yagi, “basic physiological research on the wing flapping of the sweet potato hawkmoth using multimedia,” Journal of Multimedia Information System, vol. 7, no. 2, pp. 189-196, 2020.

[23].

D. Arbet, M. Kováč, V. Stopjaková and M. Potočný, “Voltage-to-frequency converter for ultra-low-voltage applications,” in 2019 42nd International Convention on Information and Communication Technology, Electronics and Microelectronics(MIPRO), pp. 53-58, 2019.

[24].

Y. Tian, L. Qiao, and G. Qu, “small signal voltage-frequency conversion processing method for SF6 Sensor,” in 2021 3rd International Conference on Artificial Intelligence and Advanced Manufacture(AIAM), pp. 339-342, 2021.

[25].

D, D. Wentzloff, A. Alghaihab, and J. Im, “Ultra-low power receivers for IoT applications: A review” in IEEE Custom Integrated Circuits Conference(CICC) 2020, pp. 1-8, Mar. 2020.

[26].

A. Alghaihab, Y. Shi, J. Breiholz, H. Kim, B. H. Calhoun, and D. D. Wentzloff, “Enhanced interference rejection bluetooth lowenergy back-channel receiver with LO frequency hopping,” IEEE Journal of Solid-State Circuits, vol. 54, no. 7, pp. 2019-2027, Jul. 2019.

[27].

J. Im, H. Kim, and D. D. Wentzloff, “A 220- μW −83-dBm 5.8-GHz third-harmonic passive mixer-first LP-WUR for IEEE 802.11ba,” IEEE Transactions on Microwave Theory and Techniques, vol. 67, no. 7, pp. 2537-2545, 2019.

[28].

J. Moody et al., “Interference robust detector-first near-zero power wake-up receiver,” IEEE Journal of Solid-State Circuits, vol. 54, no. 8, pp. 2149-2162, 2019.

[29].

V. Mangal and P. R. Kinget, “28.1 A 0.42nW 434MHz -79.1dBm wake-up receiver with a time-domain integrator,” in 2019 IEEE International Solid-State Circuits Conference(ISSCC), pp. 438-440, 2019.

[30].

V. Mangal and P. R. Kinget, “A −80.9dBm 450MHz wake-up receiver with code-domain matched filtering using a continuous-time analog correlator,” in 2019 IEEE Radio Frequency Integrated Circuits Symposium(RFIC), pp. 259-262, 2019.

[31].

R. Liu et al., “An 802.11ba 495μW -92.6dBm-Sensitivity BlockerTolerant Wake-up Radio Receiver Fully Integrated with Wi-Fi Transceiver, “ in 2019 IEEE Radio Frequency Integrated Circuits Symposium (RFIC), pp. 255-258, 2019.

[32].

A. Kosari, M. Moosavifar, and D. D. Wentzloff, “A 152μW −99dBm BPSK/16-QAM OFDM Receiver for LPWAN Applications,” in 2018 IEEE Asian Solid-State Circuits Conference (A-SSCC), pp. 303-306, 2018.

[33].

J. Moody et al., “A −106dBm 33nW bit-level duty-cycled tuned RF wake-up receiver,” in 2019 Symposium on VLSI Circuits, pp. C86-C87, 2019.

[34].

P. P. Wang and P. P. Mercier, “28.2 A 220μW −85dBm sensitivity BLE-compliant wake-up receiver achieving −60dB SIR via single-die multi-channel FBAR-based filtering and a 4-dimentional wake-up signature,” in 2019 IEEE International Solid-State Circuits Conference - (ISSCC), 2019, pp. 440-442.

[35].

J. Moody and S. M. Bowers, “Triode-mode envelope detectors for near zero power wake-up receivers,” In 2019 IEEE MTT-S International Microwave Symposium (IMS), pp. 1499-1502, 2019.
