Analyzing Effective of Activation Functions on Recurrent Neural Networks for Intrusion Detection

Thi-Thu-Huong Le1, Jihyun Kim2, Howon Kim3,*
1School of Computer Science and Engineering, Pusan National University, Busan, Korea,
2School of Computer Science and Engineering, Pusan National University, Busan, Korea,
3School of Computer Science and Engineering, Pusan National University, Busan, Korea,
*Corresponding Author: Howon Kim, Pusan National University, PusanDaeHakRo 63BeonGil-2 (JangJeon-Dong), GeumJeong-Gu, Busan, Republic of Korea, +82-51-510-1010,

© Copyright 2016 Korea Multimedia Society. This is an Open-Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License ( which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received: Jul 02, 2016 ; Revised: Jul 15, 2016 ; Accepted: Jul 28, 2016

Published Online: Sep 30, 2016


Network security is an interesting area in Information Technology. It has an important role for the manager monitor and control operating of the network. There are many techniques to help us prevent anomaly or malicious activities such as firewall configuration etc. Intrusion Detection System (IDS) is one of effective method help us reduce the cost to build. The more attacks occur, the more necessary intrusion detection needs. IDS is a software or hardware systems, even though is a combination of them. Its major role is detecting malicious activity. In recently, there are many researchers proposed techniques or algorithms to build a tool in this field. In this paper, we improve the performance of IDS. We explore and analyze the impact of activation functions applying to recurrent neural network model. We use to KDD cup dataset for our experiment. By our experimental results, we verify that our new tool of IDS is really significant in this field.

Keywords: Recurrent Neural Networks; activation function; non-linear activation; deep learning; Intrusion Detection System


The Internet which varies from the source with useful information has become more and more developing. Hence, the data across the Internet must be secure. Intrusion Detection System (IDS) is, therefore, the tool needed in for this requirement. IDS became an essential part of the security management since network administrator based on IDS in order to prevent malicious attacks. Furthermore, IDS can detect and block attacks on the network, retain the performance normal during any malicious outbreak, perform an experienced security analysis. IDS have two different classified groups. First is anomaly detection and other is signature based detection or misused detection. To detect unknown anomalies we used to anomaly detection. On the other hand, misused detection used the known pattern to detect attacks. However, misused detection cannot detect the unknown anomalies. There are many researchers have done significant this work to develop IDS. These papers proposed an architecture of the classification techniques, algorithms being used such as Machine Learning techniques and the algorithms of neural networks.

In this paper, we organized as follows: Section II introduce the related work. Section III presents briefly background recurrent neural network and activation functions. Experiential setup is shown in Section IV. Section V is the result of the experiment. Final Section includes conclusion for our work.


There are many approaches applied for IDS based on Machine Learning. An experimental framework to compare supervised (classification) and unsupervised (clustering) learnings for detecting attack activities by Laskov [1]. The results of [1] show that the supervised algorithms show better classification accuracy on the data with known attacks. Besides Lee at el. [2] build a classifier to detect anomalies in networks using data mining techniques.

In addition, there are several algorithms based on four techniques of computational intelligent: genetic algorithms (GA), artificial neural networks (ANN), fuzzy logics (FL) and artificial immune system (AIS). To GA, Sinclair [3] use genetic algorithms and decision tree to create rules for intrusion detection expert system. Then, Li [4] describes a few disadvantage of the algorithm in [3] and defines new techniques for IDS rules. Besides ANN have the ability to learning by example and generalize from limited, noisy, and incomplete data. By combining neural network and SVM Mukkamala [5] applied it to intrusion detection. To FL, Gomer and Dasgupta [6] show that with fuzzy logic, the false alarm rate in determining intrusive activities can be reduced. Finally, AIS which consist of molecules, cells, and tissues that establish body’s resistance to infection by pathogens like bacteria, viruses, and parasites. The first of AIS is modelled various computer security problems by Hofmeyr [7]. Then, Kim [8] provide key developments computer security and six immune features for an effective IDS. Zamani [9] [10] describe an artificial immune algorithm for IDS by proposed a multi-agent environment the computationally emulates the behavior of the natural immune system to reduce false positive rates.


In this section, we summary about the knowledge of Recurrent Neural Networks (RNN) and activation functions.

3.1 Recurrent Neural Network

RNN is an extension from Feed Forward Neural Network. RNNs are called recurrent since they perform the same task for every element of a sequence, with the output being depended on the previous computations.

Fig.1 is a typical RNN and the unfolding in time of the computation involved in its forward computation. An RNN consists of three layers. The first is input layer (x). The second is hidden layer (h). Output layer (y) is the final.

Fig 1. A recurrent neural network and the unfolding in time of its forward computation.
Download Original Figure

First, we need to calculate hidden layer at time t based on the previously hidden state and the input at the current step:

h t = f ( W x h x t + W h h h t 1 )

Second, we need to compute the prediction of the model from hidden layer to output layer.

y t = f ( W h y h t )


  • Wxh is weight matrix connecting between input layer to hidden layer

  • Whh is weight matrix connecting between hidden layer to hidden layer

  • Why is weight matrix connecting between hidden layer to output layer

  • f is an activation function, we describe in Section 3.2.

3.2 Activation functions

Activation functions transform neuron’s input into output layer. Features of activation functions consist of two issues. Firstly, it is a squashing effect is required. It prevents accelerating the growth of activation levels through the network. Secondly is simple and easy to calculate. There are many activation functions that are used to for neural network. However, we choose several representative activation functions which effect to train RNN model. They are nonlinear activation functions. We briefly describe these activation functions follow as:

  • SoftPlus

    This activation function was proposed by Glorot [11]. This softplus function can be approximated by max function (or hard max), i.e. max(0, x + N(0,1)). The gradient of the sigmoid function vanishes as we increase or decrease x. The equation of SoftPlus is:

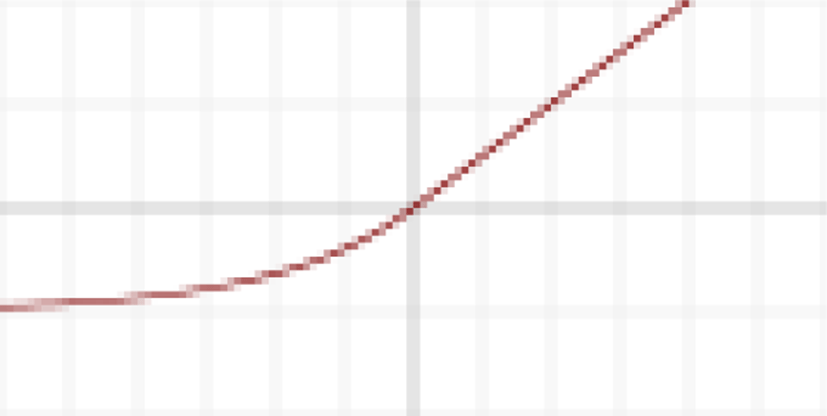

    Here is the plot of this activation

  • ReLU (Rectified Linear Unit)

    ReLU was proposed by Nair [12]. ReLU does not face gradient vanishing problem as with sigmoid and tanh function. Also, it has been shown that deep networks can be trained efficiently using ReLU even without pre-training. The equation of this function is:

    f(x)={  0  for    x<0x  for    x0

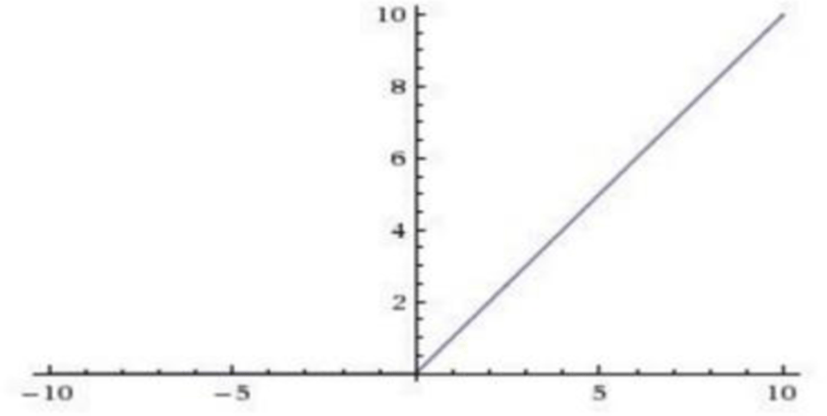

    Here is the plot of ReLU activation:

  • Tanh

    Tanh is a transformed version of Sigmoid which takes values in ±1 instead of the unit interval. Input with large absolute values and approximate 1 for large positive inputs. The equation of this function is:

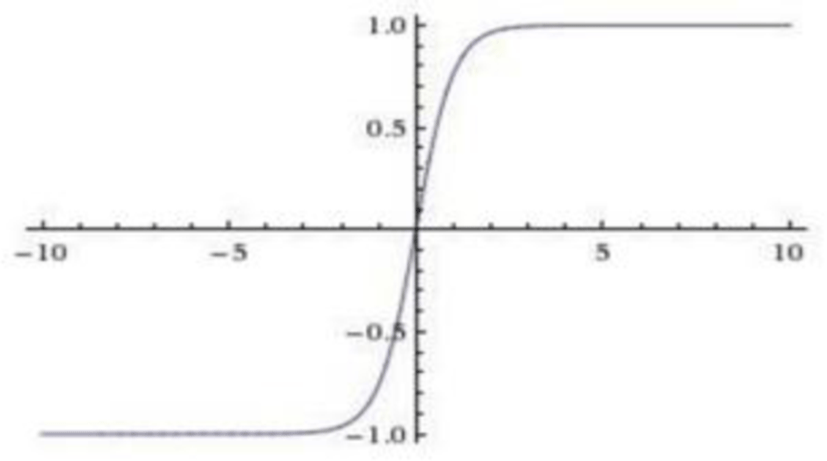

    Here is the plot of Tanh activation:

  • Sigmoid

    Sigmoid function has range [0, 1]. Hence this function can be used to model probability. The equation of this function is:

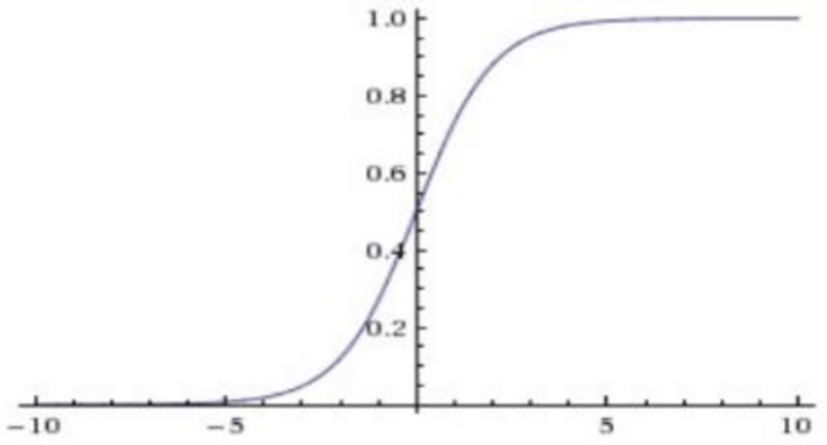

    Here is the plot of this activation:

  • LeakyReLU (Leaky Rectified Linear Unit)

    This activation is first introduced in the acoustic model by Maas [13]. A LeakyReLU can help fix the dying ReLU problem. ReLU’s can die if a large enough gradient changes the weights such that the neuron never activates on new data. We have the equation:

    f(x)={  xi  if    xi0xiai  if    xi<0

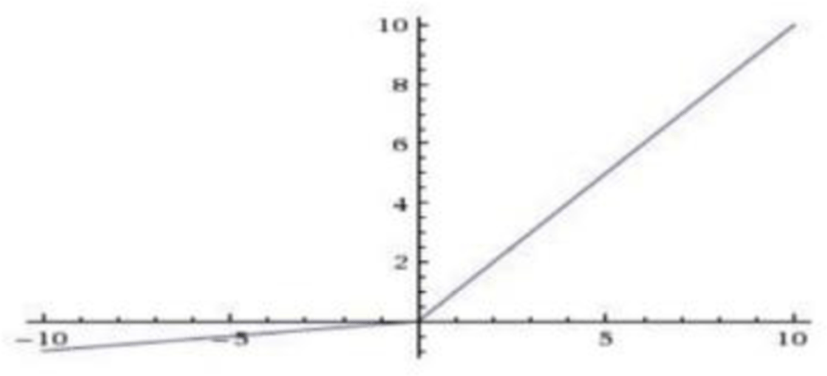

    Here is the plot of LeakyReLU:

  • ELU (Exponential Linear Unit)

    This activation function is proposed by Clevert [14]. This function which speeds up learning in deep neural networks. ELU alleviate the vanishing gradient problem via the identity for positive values. The formula for this function is:

    f(x)={  α(ex1) if    xi<0x   if xi0

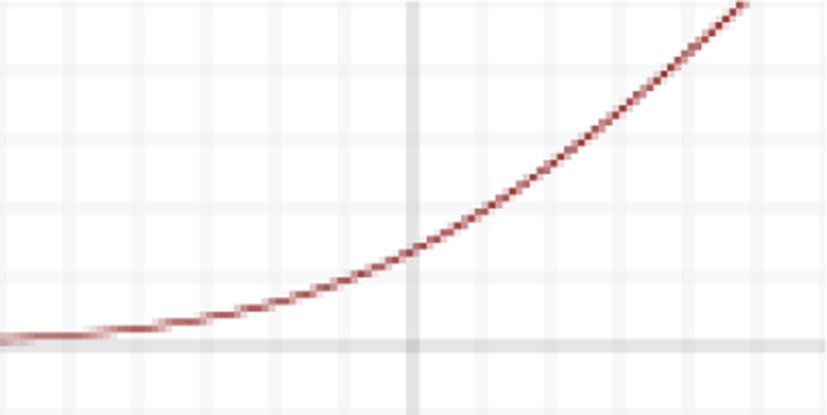

    The plot of ELU is shown in graph below:


There are several main points which we need to mention in our processing. The first, we need to choose a suitable dataset to experiment. The second, we set up the best of values for model’s hyperparameters. The third, the implementing environment is set up for training and testing processes. The final, we use to evaluation metrics to evaluate our training model.

4.1 Dataset description

We choose KDD Cup dataset to train our model. There are four types of category attack as such as DoS, R2L, U2R, and Probe. Each attack consists of many small attacks. Dos (Denial of Service) is denied legitimate requests to a system. U2R (User-to-Root) is unauthorized access to local super user (root) privileges. R2L (Remote-to-Local) is unauthorized access from a remote machine. Probing (Probe) is surveillance and another probing. Each attack consists of many small attacks. The training dataset has 22 types of attacks is shown in Table 1. And Table 2 shows 37 types of attacks for the testing dataset. How to do preprocessing this dataset for our experiment is mentioned in [15].

Table 1. List of attacks for training dataset.
Name of category Name of attacks
DoS back, land, neptune, pod, smurf, teardrop
Proble ipsweep, nmap, portsweep, satan
R2L ftpwrite, guespasswd, imap, multihop, phf, spy, warezclient, Warezmaster
U2R bufferiverflow, loadmodule, perl, rootkit
Download Excel Table
Table 2. List of attacks for testing dataset.
Name of category Name of attacks
DoS Apache2, back, land, mailbomb, Neptune, pod, processtable, smurf, teardrop
Proble ipsweep, mscan, nmap, portsweep, saint, satan
R2L ftpwrite, guespasswd, httptunnel, imap, multihop, named, phf, sendmail, snmpgetattack, warezmaster, xlock, xsnoop
U2R bufferiverflow, loadmodule, perl, ps, rootkit, snmpguess, sqlattack, worm, xterm
Download Excel Table
4.2 Initiation hyperparameters of model

The hyperparameters of values are important when we train our model. Therefore, choosing these values as suitable will help us achieve better performance. In our work, we set up the hyperparameters to train for our model as the manual. The values are shown in detail in Table 3:

Table 3. The value of hyperparameters.
Name of hyperparameter Value
Learning rate 0.001
Number of hidden layers 80
Epochs 500
Download Excel Table
4.3 Implementation environment setup

We perform to measure classification performance on our environment as following: Intel ® CoreTM i7-4790 CPU @3.60GHz; GPU: NIVIA GeForce GTX 750; RAM: 8GB and OS: Windows 7.

4.4 Evaluation metrics

We use to confusion matrix to evaluate our model. There are some metrics to compute such as Accuracy, Precision, and Recall. Here are some equations:

r e c a l l = T P T P + F N
p r e c i s i o n = T P T P + F P
a c c u r a c y = T P + T N ( T P + F P ) + ( F N + T N )


  • TP is a number of predicted as Normal while they actually were Normal.

  • FP is a number of predicted as Attack while they actually were Normal.

  • FN is a number of predicted as Normal while they actually were Attack.

  • TN is a number of predicted as Attack while they actually were Attack.

Besides, we calculate the False Alarm Rate (FAR) which is the ratio of misclassified normal attack.

F A R = F P F P + T N


We perform our approach with six activation functions to finding the best activation function for RNN on IDS.

In Fig. 2, we observe the graph that describes the classifying of each attack on IDS with our model using activation functions.

Fig. 2. The classifying of each attack using RNN with activation functions.
Download Original Figure

In particular, the result in detail of that graph is shown in Table 4. Among them, the best of the result is at LeakyReLu activation with almost the biggest of values.

Table 4. The classifying of each attack on IDS
RNN with activation function Attach’s name
DoS Probe R2L U2R Normal
softplus 0.983 0.933 0.6808 0 0.9237
ReLu 0.9866 0.5278 0.4677 0 0.7733
tanh 0.9839 0.9453 0.8834 0 0.9492
sigmoid 0.968 0.913 0.5847 0 0.9208
LeakyReLu 0.9842 0.9364 0.8885 0 0.9552
ELU 0.9837 0.9367 0.8885 0 0.943
Download Excel Table

Besides, we perform performance of classifying on IDS with RNN using six activation functions. By computing the Accuracy, Recall, and Precision, we present our result in Fig.3. And this result is described in Table 5 in detail.

Fig. 3. The classification performance on IDS using RNN with activation functions.
Download Original Figure
Table 5. The measuring metrics of performance
RNN with activation function Measuring metrics of performance
Accuracy Recall Precision
softplus 0.9669 0.9943 0.9686
ReLu 0.9401 0.9915 0.9439
tanh 0.9764 0.9941 0.9765
sigmoid 0.957 0.9958 0.9513
LeakyReLu 0.9777 0.9938 0.9785
ELU 0.975 0.9921 0.8742
Download Excel Table

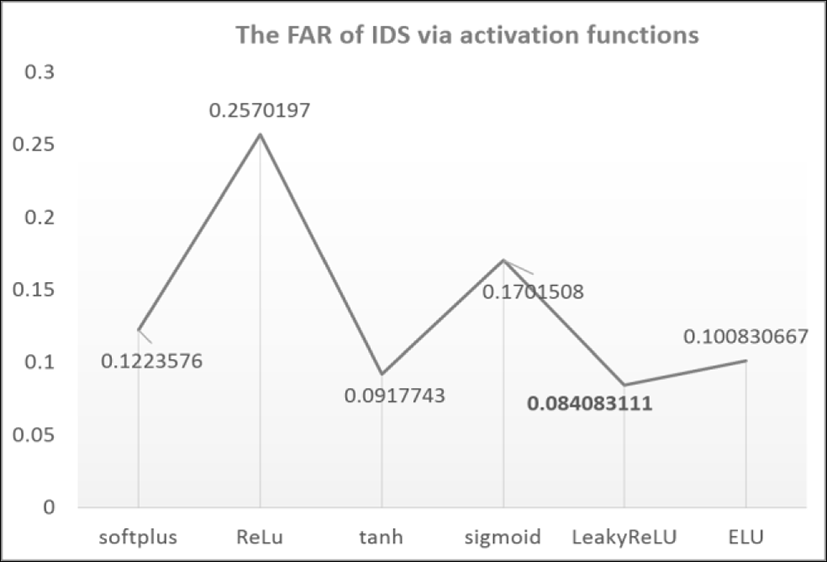

Fig. 4. The FAR of IDS using RNN with activation functions.
Download Original Figure

Furthermore, we compute False Alarm Rate (FAR) measurement. The smaller value of FAR, the better our approach. Obviously, the smallest of FAR is near 0.084 at LeakyReLu activation.

From these results, we conclude LeackyReLu activation is used to RNN outperform to others.


In our work, we perform our approach using RNN model though six activation functions. By our results, we found that LeakyReLU function returns to the best of performance classification among them. Particularly, we achieve 97.77%, 87.85% and 99.38% to accuracy, precision and recall. Hence, we confirm that RNN model using LeakyReLU function can build a new better IDS classifier.
