Development of Low-Cost Vision-based Eye Tracking Algorithm for Information Augmented Interactive System

The proposed algorithm adopts a face marker detector that extracts and maps 68 point coordinates through deep learning as shown in Fig. 2. Since only the eye area was required for this project, we detect the face area and map it to the input image to identify the area of both eyes using the labeled name instead of the coordinate number of each part.

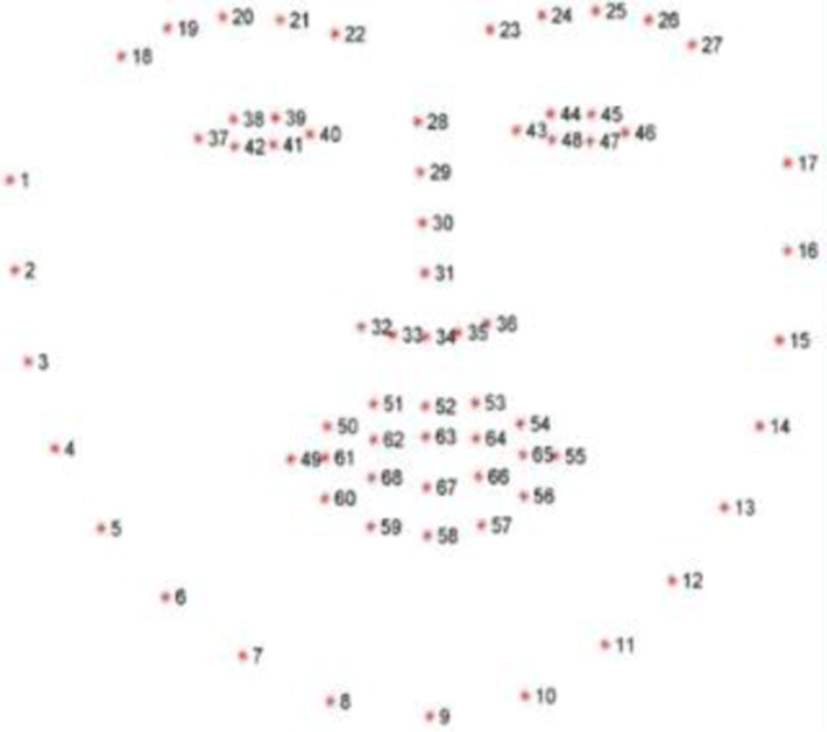

Fig. 2. Detected feature (face marker) points.

Download Original Figure

Once coordinates have been placed on each part of the face through Detect Face Parts, use the labeled name instead of the coordinate number to identify the area of both eyes. Then, we specify each eye as the region-of-interest (ROI). We can use a good and fast segmentation technique to extract the pupil region in [6].

Because this image is blurred, the contrast between light and dark is improved through smoothing and medium-sized filters. After this filtering process, we can find eyes (pupil area) by using the Hough circles function to find a circle. We condition the size of the eye radius and the range of the circle center coordinates so that we find only circles that are likely to be eyeballs. Figure 3 shows the extracted result of the pupil area by the Hough circle transform.

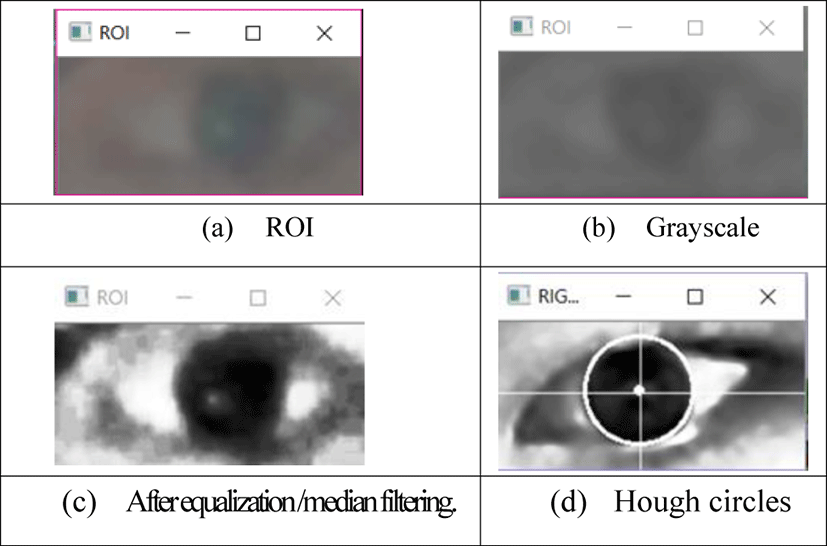

Fig. 3. Extraction of the pupil area in the eye image.

Download Original Figure

If an experiment is carried out through an eye tracker, the calibration process of setting the reference point as if adjusting the zero of the scale is carried out first. This is a process that helps to produce accurate results, and the algorithm also tracks the user’s eyes after the initialization process is preceded by a baseline [2]. The proposed algorithm also proceeds with initialization, a step in creating a new baseline for a specified number of frames.

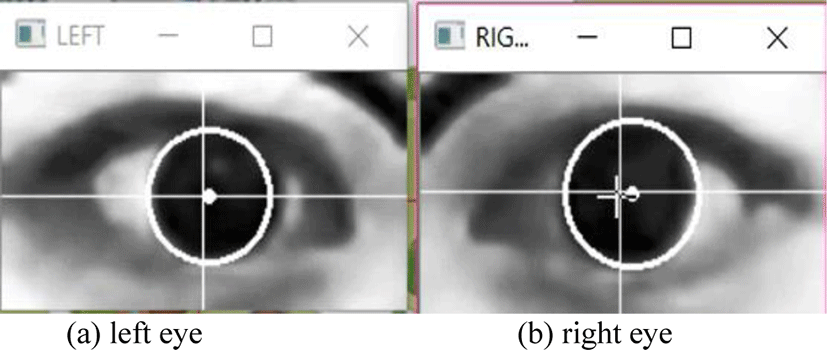

During initialization, the user creates a baseline by averaging the center coordinates of the effective circles detected, looking at the center red circle with a pause. Figure 3 shows an example for estimation of view direction vector from the base line point (cross mark).

In this stage, we compute the direction vectors from the reference point. The proposed algorithm determines which area of the image is being viewed through how far the center coordinates of the circle detected after the initialization is away from the baseline. When a human looking at an object, the human eye does not stop but constantly moves its eye pupil [5]. Therefore, the area determined based on the center coordinates of the circle detected in the pupil went up and down the area represented on the screen. It can be shaken.

Therefore, the last five numbers are averaged to determine the number of the area being viewed to stabilize the area. Figure 4 shows an example for estimation of view direction vectors from the base line point (cross mark). In actual, we need to compute the view directions from both the detected eye pupils. We take the average value of the estimated direction vectors.

Fig. 4. Estimation of the view direction vectors.

Download Original Figure

Eye link detection uses only the left and right eye coordinates of the coordinates mapped to the critical area of the face through Detect face parts. The main principle of detecting eye flicker is to determine that the eyes are closed when the difference in the coordinate values of the vertical axis coordinates (P2 and P6, P3 and P5) of both eyes is not great [10]. To express this in a formula, there is the eye apply ratio (EAR) (top of Figure 5) as:

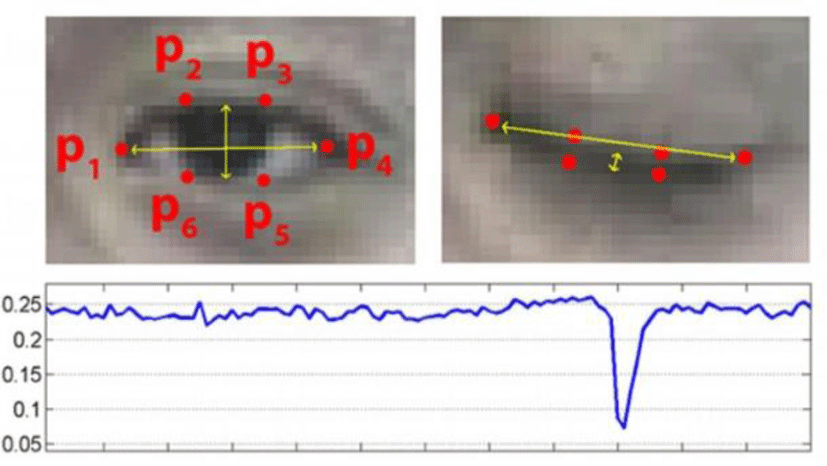

Fig. 5. Coordinate and distance measure for the blink detection.

Download Original Figure

where p_i is the specified position of the detected eye region. This is a fraction of the difference in coordinate values between horizontal and vertical axis coordinates (P1 and P4). In EAR, the difference between the values of the denominators P1 and P4 are very little, so it can be seen that the EAR values are similar when the eye opened, but when the eye is closed, the EAR suddenly becomes smaller as shown in Fig. 5 (bottom). Through experiments, we have set 0.15 as the threshold value to detect the eye blink status.

This eye blink operation is mapped into the click event in the system. That is, the system run an event when the user’s eye is blinked once.

We developed using python and IDLE as an editor. Various libraries were used to receive, process, and display images, but OpenCV was typical to locate each part of the face in real time and refer to the detect face parts using deep learning algorithm for both eyes. The database server was built using the RDS on AWS and MySQL was used as the server engine

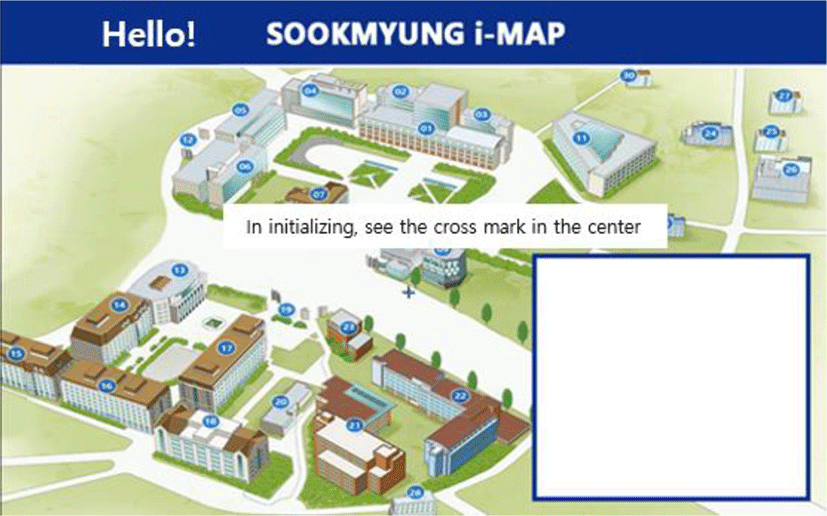

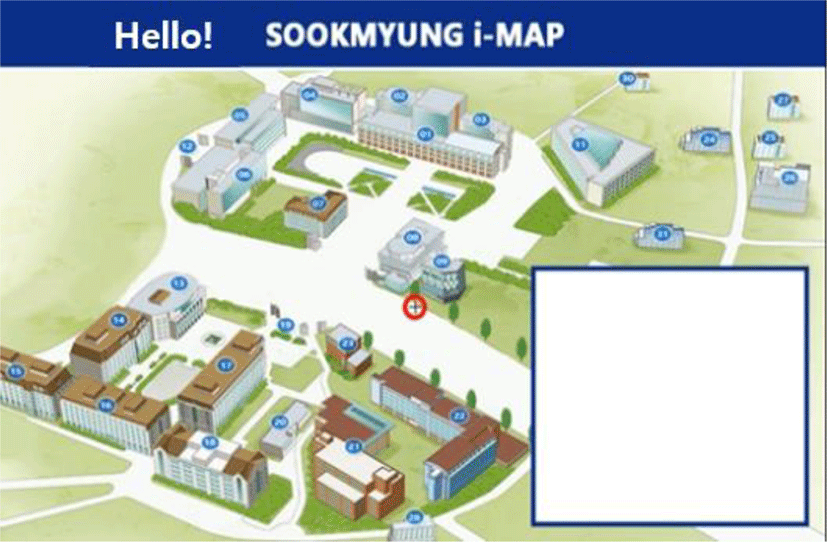

Examples of actual use scenarios are as follows: If the program is running and people are detected on the webcam, a greeting message is posted. Then, to indicate that the initialization phase is carried out first at the beginning, a notice is posted as shown in Fig. 6 to indicate that the initialization phase will go through the initialization phase soon. When the guide instruction disappears, a red circle appears in the middle of the screen, as shown in Fig. 7, and the user looks at the circle in front of the screen for a certain period of time.

Fig. 6. A guide instruction for service initialization.

Download Original Figure

Fig. 7. The service initialization process.

Download Original Figure

The location of the user’s eye was divided into large areas and processed to show the area in different colors. Figure 8 shows the building where the eyes are.

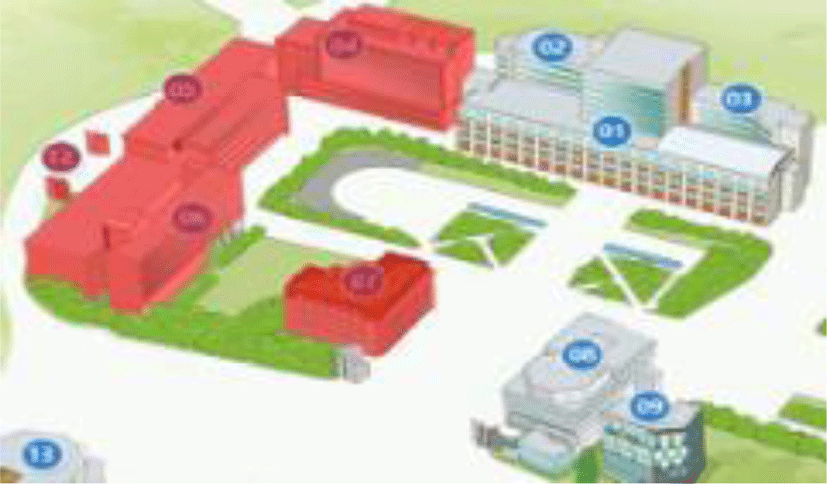

Fig. 8. An illustration of the selected building by the user’s view direction.

Download Original Figure

Once the initialization is completed properly, it can be verified that the building is marked red according to the user’s gaze. In addition, when user blinks their eyes while looking at the building for additional information, the designed augmented information about the building will appear on the right for a specified period of time as a statement (Figure 9).

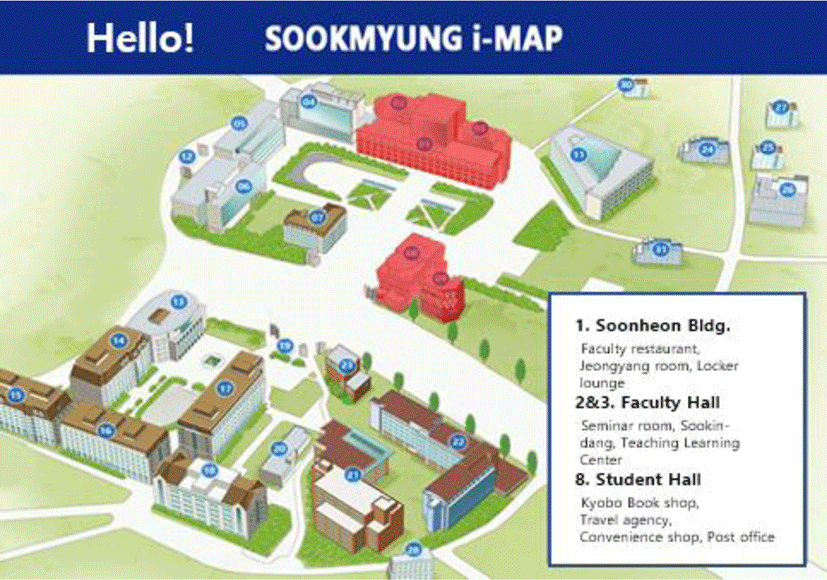

Fig. 9. The information augmented case (red colored part) and its detailed information with text.

Download Original Figure

For measuring the recognition accuracy, 24 subjects were recruited to measure the user’s perspective on the service and the accuracy of the service choice. They used the service directly using the developed eyeball tracking algorithm, and each time they determined the selection of a building at a particular location and whether the information was accurately displayed on the screen. Each person tried 3 times for each localization and service event selection. Through this experiment, we measured the accuracy of the exact event.

Table 1 shows the accuracy of the localization and service event selection. The accuracy of the eye pointing was achieved by 88.4% and 85.5% of the service selection accuracy was obtained when a user blinks to select the specific building. The final accuracy of service was 85.5% in the developed system.

Table 2 shows the consumed time as frame per seconds (FPS). Usual commercial webcam supports the full high-definition (HD) (resolution of 1920x1080). In this resolution, we achieved 22.3 FPS to make final event action. It means that the developed system is able to be applied for real-time system.
